WAGO 756-1105/060-050

756-1105/060-050 WAGO 756-1105/060-050

WAGO 756-1105/060-050
Part # 756-1105/060-050
Manufacturer WAGO
GTIN 4045454521684
Condition New
Price: $ 90.90

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
PBUS CBL, M12, SKT/PLG, ST, 5M
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

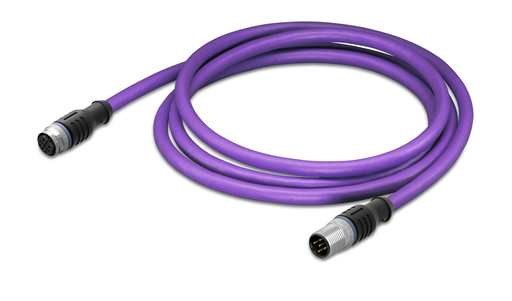

PROFIBUS cable, straight 5 m both wire ends fitted with plug/socket

Features

  • PUR, halogen-free
  • Suitable for drag chains
  • Silicon- and PVC-free
  • High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
  • High chemical resistance

Specifications

Technical Data

  • Connection type: M12 socket - M12 plug
  • Pole No.: 5
  • Cable connection direction to mating direction: 0 °
  • Cable connection direction to mating direction (2): 0 °
  • Connector interface coding (cable/adapter) 1 1: B-coded
  • Connector interface coding (cable/adapter) 2 1: B-coded
  • Cable length: 5 m
  • Communication/fieldbus: PROFIBUS
  • Operating voltage: ≤ 300 V
  • Operating current: 4 A
  • Rated surge voltage: 2 kV
  • Insulation resistance: > 2500 MΩ/km
  • Conductor resistance: Max. 55 Ω/km; Loop resistance: max. 110 Ω/km

Mechanical Data

  • Bending radius: > 10 x cable Ø (flexible use); > 5 x cable Ø in drag chain (fixed installation)
  • Bending cycles: 1 Mio.
  • Drag chain suitability: Yes
  • Sheathed cable diameter: 7.3 … 7.9 mm
  • Type code: LI02YS-(ST)CB11Y 1X(2X0.34SQMM)
  • Shield: Shielding braid, (approx. 5.90 mm Ø), tinned CU-ETP1, coverage 85 % ± 5 %
  • Conductor design: Bare copper wire (19 x 0.15 mm)
  • Conductor insulation: PE (halogen-free); Filler: PP yarn
  • Housing material: TPU/TPU, black (~ RAL 9005)
  • Tightening torque: 1 Nm
  • Weight: 350.000 g
  • Color: Violet

Environmental Requirements

  • Surrounding air (operating) temperature (dynamic): -25 … +60 °C
  • Surrounding air (operating) temperature (static): -50 … +60 °C
  • Protection type: IP67
  • Pollution degree (5): 3/2 per IEC 60664-1
  • Fire load: 0.000 MJ

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454521684
  • Customs tariff number Sales Organisation Germany: 85444290900
: *
: *
: *
