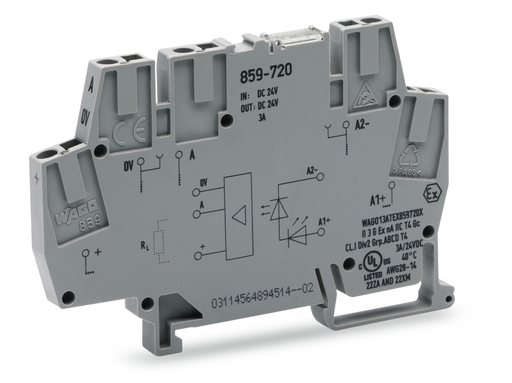

WAGO 859-720

859-720 WAGO 859-720

WAGO 859-720
Part # 859-720
Manufacturer WAGO
GTIN 4045454198466
Condition New
Price: $ 41.87
Qty
14 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
TERM. BLK OPTOCOUPLER 24 VDC, 3A
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Optocoupler terminal block negative switching

Features

Approvals

  • UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
  • CQST/CNEx, CCCEx, 2021312304000982, CNCA-C23-01
  • Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01

Specifications

Notes

  • Note: Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Control Circuit

  • Nominal input voltage UN: DC 24 V
  • Input voltage range (low level): DC 0 … 3 V
  • Input voltage range (high level): DC 16 … 30 V
  • Nominal input current at UN: 4 mA

Load Circuit

  • Circuit type: 3-wire connection || Low-side switching
  • Limiting continuous current: 3 A
  • Peak output current: 20 A
  • Nominal output voltage: DC 24 V
  • Output voltage range: DC 10 … 30 V
  • Voltage drop at output (max.): ≤ DC 0.5 V
  • Leakage current at rated voltage: ≤ 25 µA
  • Turn-on time: ≤ 30 µs
  • Turn-off time: ≤ 75 µs
  • Rise time (t10-90): 16 µs
  • Drop-out time (t10-90): 20 µs
  • Switching frequency: ≤ 1 kHz (< 0.5 A; ≤ 2 kHz / < 1 A; ≤ 1 kHz / < 2 A)

Signaling

  • Status indicator: Red LED

Safety And Protection

  • Rated voltage: 300 V
  • Overvoltage category: II
  • Pollution degree: 2
  • Dielectric strength, control/load circuit (AC, 1 min): 2.5 kVrms
  • Insulation type (control/load circuit): Basic insulation
  • Insulation type (adjacent devices): Reinforced insulation (safe isolation)

Connection Data

  • Connection technology: CAGE CLAMP®
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

  • Width: 6 mm / 0.236 inch
  • Height: 91 mm / 3.583 inch
  • Depth from upper edge of DIN-rail: 56 mm / 2.205 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Gray
  • Fire load: 0.513 MJ
  • Weight: 18.299 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -25 … 40 °C
  • Surrounding air (operating) temperature for UL: -40 … 40 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 61010-2-201 || EN 61000-6-2 || EN 61000-6-3 || EN 61373 || UL 508

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143604802
  • Customs tariff number Sales Organisation Germany: 85365005000
: *
: *
: *
