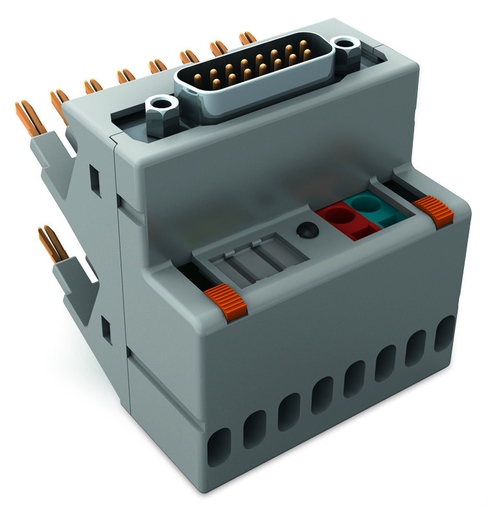

Features

Approvals

• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
• Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
• Polski Rejestr Statków, PRS, TE/2186/880590/18

Specifications

Notes

• Note: Bei den angegebenen technischen Daten handelt es sich um Maximalwerte. Diese können durch das verwendete Zubehör eingeschränkt werden.

Electrical Data

• Inputs/outputs: 8-channel digital input
• Circuit type: High-side switching input
• Nominal operating voltage: DC 24 V
• Operating voltage range: ±30 %
• Total current: 3 A
• Limiting continuous current: 1 A
• Contact resistance: ≤ 10 mΩ
• Status indicator: Green LED

Safety And Protection

• Rated voltage: 50 V
• Pollution degree: 2
• Overvoltage category: II

Connection Data

• Pole No.: 15
• Connection type (1): System
• Pole number 1: 15
• Pluggable connectors: D-sub male connector
• Connection type 2: Field
• Pole number 2: 16
• Design 2: Plug for jumper slot
• Connection type (3): Supply
• Pole number 3: 2
• Connection technology 3: CAGE CLAMP®
• Solid conductor 3: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor (3): 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length 3: 5 … 6 mm / 0.2 … 0.24 inch
• Performance level: 2

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.619 MJ
• Weight: 48.200 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454995195
• Customs tariff number Sales Organisation Germany: 85369010000
