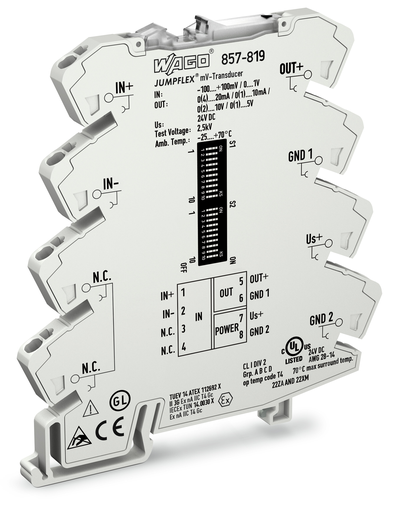

JUMPFLEX® signal conditioner; millivolt; -100 … +100 mV, 0 … 1000 mV; configurable
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
JUMPFLEX® signal conditioner; millivolt; -100 … +100 mV, 0 … 1000 mV; configurable

Features

  • PC configuration interface
  • Calibrated measurement range switching
  • Clipping capability for analog signal limitation to output end values
  • Safe 3-way isolation with 2.5 kV test voltage per EN 61140

Approvals

  • Nippon Kaiji Kyokai, NK, TA17255M
  • TUEV Nord Cert GmbH, IECEx, TÜV_14_ATEX_112692_X, EN 60079-0
  • Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
  • UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
  • Polski Rejestr Statków, PRS, TE/2186/880590/18
  • TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011
  • CQST/CNEx, CCCEx, 2020312310000210, CNCA-C23-01
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
  • Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01

Specifications

Notes

  • Note: Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App

Configuration

  • Configuration options: DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App

Input

  • Input signal type: Voltage
  • Input signal (voltage): ±100 mV; 0 … 200 mV; 0 … 300 mV; 0 … 400 mV; 0 … 500 mV; 0 … 600 mV; 0 … 700 mV; 0 … 800 mV; 0 … 900 mV; 0 … 1 V
  • Input resistance (voltage input): ≥ 1 MΩ
  • Input voltage (max.): ±31.2 VDC
  • Measurement span (min.): 10 mV

Output – Analog

  • Output signal type: Current || Voltage
  • Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
  • Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
  • Load impedance (voltage output): ≥ 2 kΩ
  • Load impedance (current output): ≤ 600 Ω

Signal Processing

  • Step response (typ.): 50 ms

Measurement Error

  • Transmission error (typ.): ≤ 0.1 % at full measurement span
  • Temperature coefficient: ≤ 0.01 %/K

Supply

  • Power supply type: 24 VDC
  • Nominal supply voltage US: DC 24 V
  • Supply voltage range: ±30 %
  • Power consumption at nominal supply voltage: ≤ 40 mA

Test Voltage

  • Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min

Connection Data

  • Connection technology: Push-in CAGE CLAMP®
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 6 mm / 0.236 inch
  • Height: 94 mm / 3.701 inch
  • Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Fire load: 0.000 MJ
  • Weight: 36.314 g

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Conformity marking: CE
  • EMC immunity to interference: EN 61000-6-2
  • EMC emission of interference: EN 61000-6-4

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454665975
  • Customs tariff number Sales Organisation Germany: 85437090300
: *
: *
: *
