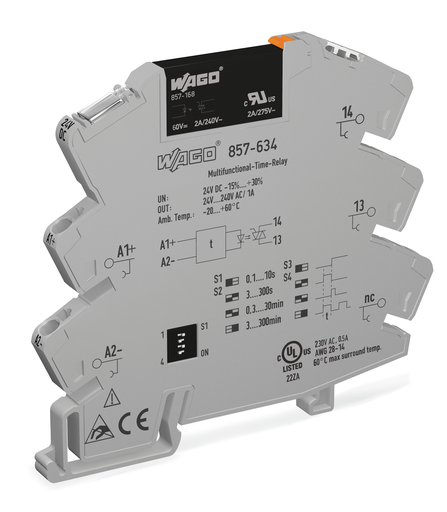

WAGO 857-634

857-634 WAGO 857-634

WAGO 857-634
Part # 857-634
Condition New
Price: $ 100.00

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Multifunction timing relay with soli
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Multifunction timing relay with soli

Features

  • 4 functions
  • Function and time range adjustable via DIP switch

Approvals

  • UL International Netherlands B.V., UL, E175199 Sec.4, UL 508

Specifications

Notes

  • Note: Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Control Circuit

  • Nominal input voltage UN: DC 24 V
  • Input voltage range: -15 … +30 %
  • Nominal input current at UN: 9.15 mA
  • Time range: Adjustable: 0.1 … 10 s; 3 … 300 s; 0.3 … 30 min; 3 … 300 min
  • Reset time: 50 ms
  • Repeat accuracy: 1 %
  • Functions: On-delay || Single-shot leading edge || On-delay and single-shot leading edge (1 s fixed) || Flashing

Load Circuit

  • Circuit type: 2-wire connection || Zero-voltage switching
  • Limiting continuous current: 1 A
  • Nominal output voltage: AC 230 V
  • Output voltage range: AC 24 … 240 V
  • Voltage drop at output (max.): ≤ AC 1 V
  • Leakage current at rated voltage: ≤ 1.5 mA
  • Switching current (min.): 10 mA
  • Turn-on time: ≤ 10 ms
  • Turn-off time: ≤ 10 ms

Signaling

  • Status indicator: Yellow LED

Safety And Protection

  • Dielectric strength, control/load circuit (AC, 1 min): 3.75 kVrms
  • Protection type: IP20

Connection Data

  • Connection technology: Push-in CAGE CLAMP®
  • Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 6 mm / 0.236 inch
  • Height: 94 mm / 3.701 inch
  • Depth from upper edge of DIN-rail: 81 mm / 3.189 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Fire load: 0.000 MJ
  • Weight: 29.477 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -20 … 60 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 85 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 61812-1 || EN 61373 || EN 50121-3-2

Basic Relay

  • WAGO Basic Relay: 857-167

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821565697
  • Customs tariff number Sales Organisation Germany: 85364900990
: *
: *
: *
