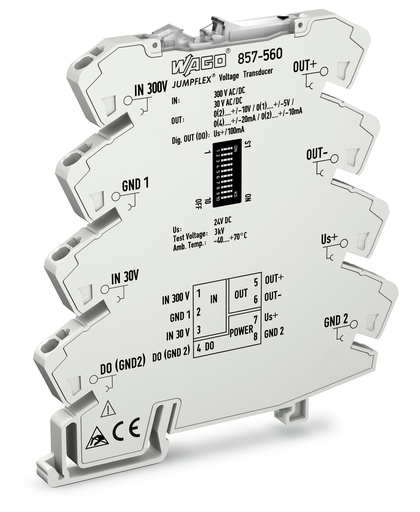

WAGO 857-560

857-560 WAGO 857-560

WAGO 857-560
Part # 857-560
Condition New
Price: $ 351.20

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
JUMPFLEX® signal conditioner; voltage; configurable; with digital output
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
JUMPFLEX® signal conditioner; voltage; configurable; with digital output

Features

  • Two isolated measurement inputs for 30 and 300 V AC/DC
  • RMS measurement or arithmetic mean value
  • A digital signal output reacts to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values).
  • Switchable filter function
  • Safe 3-way isolation with 3 kV test voltage per DIN EN 61010-1

Approvals

  • Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Configuration

  • Configuration options: DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App

Input

  • Input signal type: Voltage
  • Input signal (voltage): AC/DC 300 V (IN 1); AC/DC 30 V (IN 2)
  • Frequency range: 10 … 100 Hz (AC)
  • Input resistance (voltage input): ≥ 300 kΩ
  • Response threshold: 300 mV (IN 1); 30 mV (IN 2)
  • Resolution (voltage): 30 mV (IN 1) || 3 mV (IN 2)

Output – Analog

  • Output signal type: Current || Voltage
  • Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V (can be inverted (also bipolar))
  • Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (can be inverted (also bipolar))
  • Load impedance (voltage output): ≥ 1 kΩ
  • Load impedance (current output): ≤ 600 Ω

Output – Digital

  • Switching voltage (DO) (max.): Supply voltage (applied)
  • Continuous current (DO) (max.): 100 mA (no internal restriction)
  • Number of switching thresholds (DO): 1 or 2 (adjustable)
  • Configurable rise/fall delay time (DO): 0 … 60 s (via software)

Signal Processing

  • Measurement method: RMS measurement; Arithmetic mean value
  • Limit frequency: 2 kHz
  • Software filter (adjustable): Moving average value (filter level: 30)
  • Step response (typ.): 30 ms

Measurement Error

  • Transmission error (max.): ≤ 0.5 % (of the full scale value)
  • Temperature coefficient: ≤ 0.01 %/K

Supply

  • Power supply type: 24 VDC
  • Nominal supply voltage US: DC 24 V
  • Supply voltage range: ±30 %
  • Power consumption at nominal supply voltage: ≤ 46 mA (+ IDO)

Test Voltage

  • Test voltage (input/analog output/supply/service interface): 2.5 kVAC; 50 … 60 Hz; 1 min

Insulation Parameters Per En/Ul 61010-1

  • Line-to-neutral conductor voltage (AC) max.: 150 V
  • Overvoltage category: II
  • Pollution degree: 2
  • Insulation type (input/analog output/supply/service interface): Reinforced insulation

Insulation Parameters Per En 61010-1

  • Line-to-neutral conductor voltage (AC) max.: 300 V
  • Overvoltage category: II
  • Pollution degree: 2
  • Insulation type (input/analog output/supply/service interface): Double insulation (impedance and basic insulation)Requirement: The GND 1 input is dangerous when active and the measurement is conducted as a low-side measurement!

Connection Data

  • Connection technology: Push-in CAGE CLAMP®
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 6 mm / 0.236 inch
  • Height: 94 mm / 3.701 inch
  • Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Fire load: 0.000 MJ
  • Weight: 40.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 70 °C (at nominal current)
  • Surrounding air temperature (storage): -40 … 85 °C
  • Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 10 K)
  • Temperature range of connecting cable per UL 61010-2-201 (min.): 90 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Conformity marking: CE
  • EMC immunity to interference: EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
  • EMC emission of interference: EN 61000-6-3; EN 61326-2-3; EN 50121-3-2
  • Standards/Specifications: EN 61010-1 || EN 61373

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143481571
  • Customs tariff number Sales Organisation Germany: 85437090300
: *
: *
: *
