JUMPFLEX® signal conditioner; current; 0 ... 1 A AC, 0 ... 5 A DC; configurable
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend

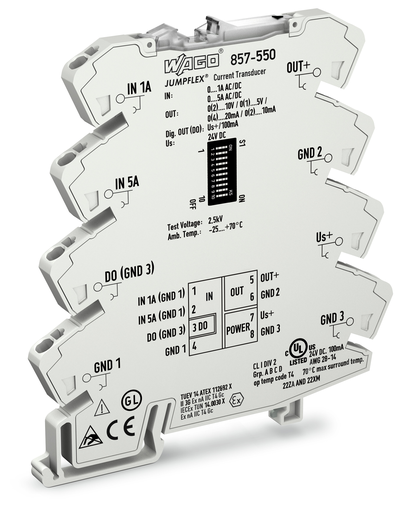

JUMPFLEX® signal conditioner; current; 0 ... 1 A AC, 0 ... 5 A DC; configurable
Features
PC configuration interface
True RMS measurement or arithmetic mean value
Digital switching output (configurable switching thresholds)
Switchable filter function
Calibrated measurement range switching
Safe 3-way isolation with 2.5 kV test voltage per EN 61140
Extremely fast response times
Measurement range overflow indication
Approvals
UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011
Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
TUEV Nord Cert GmbH, IECEx, TÜV_14_ATEX_112692_X, EN 60079-0
Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
Polski Rejestr Statków, PRS, TE/2186/880590/18
TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
CQST/CNEx, CCCEx, 2020312310000210, CNCA-C23-01
Specifications
Notes
Note: Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App
Configuration
Configuration options: DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App
Input
Input signal type: Current
Input signal (current): AC/DC 0 … 1 A (IN 1); AC/DC 0 … 5 A (IN 2)
Frequency range: 16 … 400 Hz
Input resistance (current input): 47 mΩ (IN 1); 10 mΩ (IN 2)
Input current (max.): 10 A (IN 1; 5 s); 15 A (IN 2; 5 s)
Response threshold: 2 mA (IN 1); 4 mA (IN 2)
Output – Analog
Output signal type: Current || Voltage
Output signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
Load impedance (voltage output): ≥ 2 kΩ (Temperature range restrictions may occur.)
Load impedance (current output): ≤ 600 ΩTemperature range restrictions may occur.
Output – Digital
Switching voltage (DO) (max.): Supply voltage (applied)
Continuous current (DO) (max.): 100 mA (no internal restriction)
Number of switching thresholds (DO): 1 (adjustable)
Signal Processing
Measurement method: True RMS measurement; Arithmetic mean value
Software filter (adjustable): Moving average value (filter level: 30)
Step response (typ.): 60 ms
Measurement Error
Transmission error (typ.): ≤ 0.1 % of upper-range value
Transmission error (max.): ≤ 0.4 % of upper-range value
Temperature coefficient: ≤ 0.01 %/K
Supply
Power supply type: 24 VDC
Nominal supply voltage US: DC 24 V
Supply voltage range: ±30 %
Power consumption at nominal supply voltage: ≤ 40 mA (+ IDO)
Test Voltage
Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min
Connection Data
Connection technology: Push-in CAGE CLAMP®
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inch
Physical Data
Width: 6 mm / 0.236 inch
Height: 94 mm / 3.701 inch
Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 0.000 MJ
Weight: 64.000 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C (at nominal current)
Surrounding air temperature (storage): -40 … 85 °C
Relative humidity: 5 … 95 % (no condensation permissible)
Operating altitude (max.): 2000 m
Standards And Specifications
Conformity marking: CE
EMC immunity to interference: EN 61000-6-2
EMC emission of interference: EN 61000-6-4
Commercial Data
Packaging type: Bag
Country of origin Sales Organisation Germany: DE
GTIN: 4050821226734
Customs tariff number Sales Organisation Germany: 85437090300
