Series 857
»
WAGO 857-531
WAGO 857-531
857-531 WAGO 857-531
InStock
InStock
Part #
857-531
Condition
New
Quantity
Price
*Note:
Price:
$
283.30
Qty
1
Add to cart
1
In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
JUMPFLEX® signal conditioner; threshold value switch with analog input and changeover relay output; configurable
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend

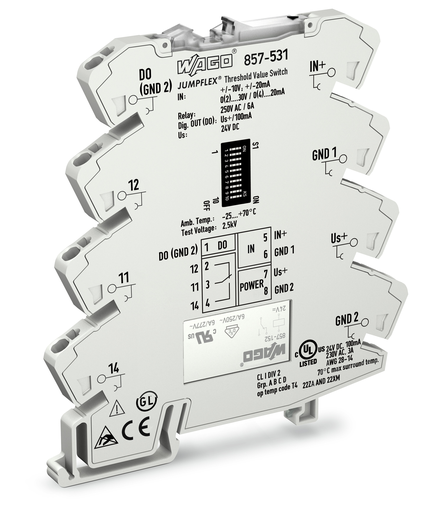

JUMPFLEX® signal conditioner; threshold value switch with analog input and changeover relay output; configurable
Features
PC configuration interface
Digital switching output
Changeover contact relay output
Calibrated measurement range switching
Threshold value configuration via DIP switches and teach-in function via push/slide switch
Safe 3-way isolation with 2.5 kV test voltage per EN 61140
Approvals
Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
Polski Rejestr Statków, PRS, TE/2186/880590/18
UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
Nippon Kaiji Kyokai, NK, TA17255M
Specifications
Notes
Note: Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App
Configuration
Configuration options: DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App || Push/slide switch
Input
Input signal type: Voltage || Current
Input signal (voltage): ±10 V; 0 … 30 V
Input signal (current): ±20 mA
Input resistance (current input): ≤ 200 Ω
Input resistance (voltage input): ≥ 100 kΩ
Input current (max.): 22 mA
Input voltage (max.): 31 V
Output – Digital
Switching voltage (DO) (max.): Supply voltage (applied)
Continuous current (DO) (max.): 100 mA (no internal restriction)
Number of switching thresholds (DO): 1 (adjustable)
Configurable rise/fall delay time (DO): 10 s
Output – Relay
Number of changeover/switchover contacts: 1
Switching voltage (max.): AC 250 V
Limiting continuous current (relay; module assembly): 6 A (≤ 60 °C); 2 A (60 … 70 °C)
Switching power (resistive) (max.): AC 1250 VA
Drop-out time (typ.): 4 ms
Number of switching thresholds (relay): 1 or 2 (adjustable)
Configurable rise/fall delay time (relay): 0 … 30 s (via software)
Signal Processing
Hysteresis: Adjustable via DIP switch or software
Step response (typ.): 16 ms
Measurement Error
Transmission error (typ.): ≤ 0.1 % of upper-range value
Temperature coefficient: ≤ 0.01 %/K
Supply
Power supply type: 24 VDC
Nominal supply voltage US: DC 24 V
Supply voltage range: ±30 %
Power consumption at nominal supply voltage: ≤ 25 mA (+ IDO)
Test Voltage
Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min
Connection Data
Connection technology: Push-in CAGE CLAMP®
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inch
Physical Data
Width: 6 mm / 0.236 inch
Height: 94 mm / 3.701 inch
Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Color: Light gray
Fire load: 0.000 MJ
Weight: 38.600 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -40 … 85 °C
Relative humidity: 5 … 85 % (no condensation permissible)
Operating altitude (max.): 2000 m
Standards And Specifications
Conformity marking: CE
EMC immunity to interference: EN 61000-6-2; EN 61131-2; EN 61326-1
EMC emission of interference: EN 61000-6-4; EN 61131-2; EN 61326-1
Standards/Specifications: EN 61373
Commercial Data
Packaging type: Bag
Country of origin Sales Organisation Germany: DE
GTIN: 4045454885229
Customs tariff number Sales Organisation Germany: 85437090300
