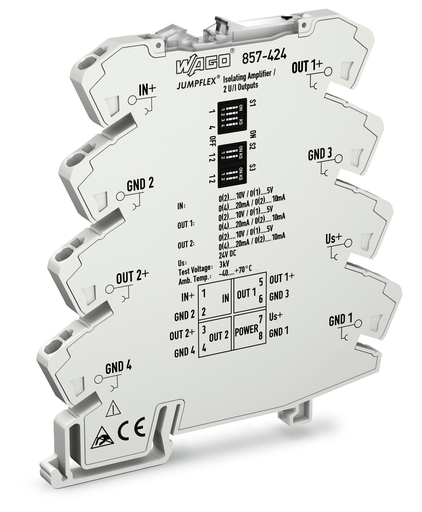

Features

• Two configurable voltage/current outputs
• Switchable limit frequency
• Safe 4-way isolation with 3 kV test voltage per EN 61010-1

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Notes

• Note: Geschirmte Signalleitungen verwenden!Verwenden Sie für analoge Ein- und Ausgangssignale ausschließlich geschirmte Signalleitungen.Nur so ist gewährleistet, dass die für das Gerät angegebene Genauigkeit und Störfestigkeitauch bei Vorliegen von auf das Signalkabel einwirkenden Störungen erreicht werden.

Configuration

• Configuration options: DIP switch

Input

• Input signal type: Voltage || Current
• Input signal (voltage): 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
• Input signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
• Input resistance (current input): ≤ 50 Ω
• Input resistance (voltage input): ≥ 100 kΩ
• Input current (max.): 50 mA
• Input voltage (max.): 30 V

Output – Analog

• Output signal type: Voltage || Current
• Output signal (voltage): 0 … 10 V; 2 … 10 V (calibrated switching)
• Output signal (current): 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA (calibrated switching)
• Load impedance (voltage output): ≥ 2 kΩ (per channel)
• Load impedance (current output): ≤ 600 Ωper channel

Signal Processing

• Limit frequency: 100 Hz / 1 kHz (configurable via DIP switch)
• Step response (typ.): 5.2 ms (100 Hz); 650 µs (1 kHz)

Measurement Error

• Transmission error (typ.): ≤ 0.1 % of upper-range value
• Temperature coefficient: ≤ 0.01 %/K

Supply

• Power supply type: 24 VDC (SELV)
• Nominal supply voltage US: DC 24 V
• Supply voltage range: -60 … +30 %
• Stromaufnahme (Default): < 27 mA
• Stromaufnahme (max.): < 250 mA (2 x Iout 20 mA; Bürde: 600 Ω; Us+: 9,6 V)

Test Voltage

• Test voltage (input/analog output 1/analog output 2/supply): 3 kVAC; 50 … 60 Hz; 1 min

Insulation Parameters Per En/Ul 61010-1

• Line-to-neutral conductor voltage (AC) max.: 300 V
• Overvoltage category: II
• Pollution degree: 2
• Insulation type (input/analog output 1/analog output 2/supply): Reinforced insulation

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Cable type: Shielded cable

Physical Data

• Width: 6 mm / 0.236 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.000 MJ
• Weight: 42.020 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C (for single module; -40 … +50 °C for module assembly)
• Surrounding air temperature (storage): -40 … 85 °C
• Processing temperature: -25 … +50 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 10 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 75 °C
• Relative humidity: 5 … 95 % (non-condensing)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2; EN 61326-1; EN 50121-3-2
• EMC emission of interference: EN 61000-6-3; EN 61326-1; EN 50121-3-2
• Standards/Specifications: EN 61010-1 || EN 61373

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143595476
• Customs tariff number Sales Organisation Germany: 85437090300
