Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
Polski Rejestr Statków, PRS, TE/2186/880590/18
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
UL International Netherlands B.V., UL, E175199 Sec.4, UL 508

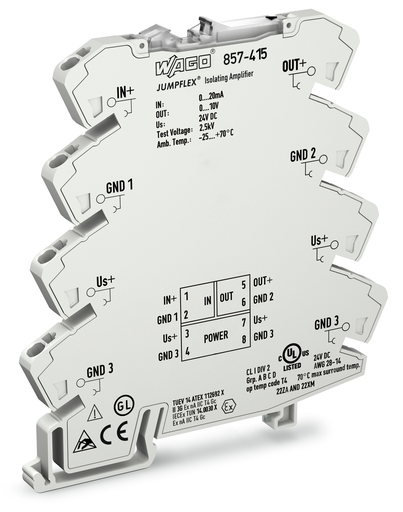

Specifications
Notes
Note: The 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned.Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.)
Configuration
Configuration options: Pre-configured
Input
Input signal type: Current
Input signal (current): 0 … 20 mA
Input resistance (current input): ≤ 50 Ω
Input current (max.): 50 mA
Output – Analog
Output signal type: Voltage
Output signal (voltage): 0 … 10 V
Load impedance (voltage output): ≥ 2 kΩ
Signal Processing
Limit frequency: 100 Hz
Step response (typ.): 3.5 ms
Measurement Error
Transmission error (typ.): ≤ 0.1 % of upper-range value
Temperature coefficient: ≤ 0.01 %/K
Supply
Power supply type: 24 VDC
Nominal supply voltage US: DC 24 V
Supply voltage range: ±30 %
Power consumption at nominal supply voltage: ≤ 25 mA
Test Voltage
Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min
