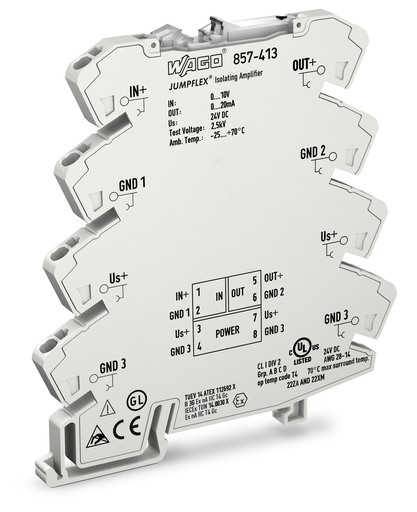

Note: The 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned.Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.)
Configuration
Configuration options: Pre-configured
Input
Input signal type: Voltage
Input signal (voltage): 0 … 10 V
Input resistance (voltage input): ≥ 100 kΩ
Input voltage (max.): 30 V
Output – Analog
Output signal type: Current
Output signal (current): 0 … 20 mA
Load impedance (current output): ≤ 600 Ω
Signal Processing
Limit frequency: 100 Hz
Step response (typ.): 3.5 ms
Measurement Error
Transmission error (typ.): ≤ 0.1 % of upper-range value
Temperature coefficient: ≤ 0.01 %/K
Supply
Power supply type: 24 VDC
Nominal supply voltage US: DC 24 V
Supply voltage range: ±30 %
Power consumption at nominal supply voltage: ≤ 25 mA
Test Voltage
Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min
