Series 857
»

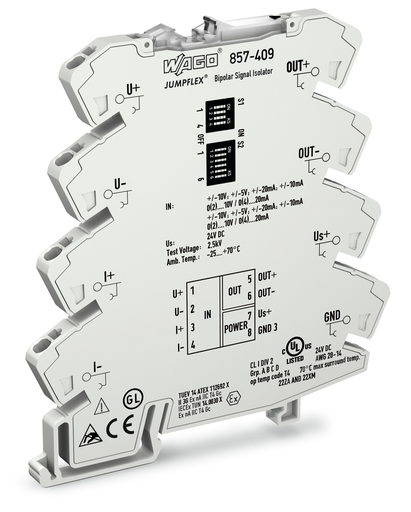

WAGO 857-409
WAGO 857-409
857-409 WAGO 857-409
OutOfStock
OutOfStock
Part #
857-409
Condition
New
Quantity
Price
*Note:
Price:
$
372.20
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!
JUMPFLEX® signal conditioner; bipolar isolation amplifier; configurable
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
JUMPFLEX® signal conditioner; bipolar isolation amplifier; configurable
Features
Overload protection of current input via resettable fuse
Zero/span adjustment across the entire measurement range
Calibrated measurement range switching
Unipolar/bipolar standard analog signals at both input/output
Switchable limit frequency
Safe 3-way isolation with 3 kV test voltage per EN 61010-1
Approvals
UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
Polski Rejestr Statków, PRS, TE/2186/880590/18
TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1
CQST/CNEx, CCCEx, 2020312310000210, CNCA-C23-01
TUEV Nord Cert GmbH, IECEx, TÜV_14_ATEX_112692_X, EN 60079-0
Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011
Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
Specifications
Configuration
Configuration options: DIP switch
Input
Input signal type: Voltage || Current
Input signal (voltage): ±5 V; 0 … 5 V; 1 … 5 V; ±10 V; 0 … 10 V; 2 … 10 V
Input signal (current): ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA
Input resistance (current input): ≤ 50 Ω
Input resistance (voltage input): 1 MΩ
Input current (max.): 50 mA
Input voltage (max.): 32 V
Zero/span adjustment: ± 5 % of upper-range value
Output – Analog
Output signal type: Current || Voltage
Output signal (voltage): ± 5 V; 0 … 5 V; 1 … 5 V; ± 10 V; 0 … 10 V; 2 … 10 V
Output signal (current): ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA
Load impedance (voltage output): ≥ 2 kΩ
Load impedance (current output): ≤ 600 Ω
Residual ripple: ≤ 10 mV (rms)
Signal Processing
Limit frequency: 100 Hz / 5 kHz (configurable via DIP switch)
Step response (typ.): 3.5 ms (100 Hz); 68 µs (5 kHz)
Measurement Error
Transmission error (typ.): ≤ 0.1 % of upper-range value
Transmission error (max.): ≤ 0.2 % of upper-range value
Übertragungsfehler (unter Störbeaufschlagung): ≤ 15 %
Temperature coefficient: ≤ 0.01 %/K
Supply
Power supply type: 24 VDC
Nominal supply voltage US: DC 24 V
Supply voltage range: ±30 %
Power consumption at nominal supply voltage: ≤ 40 mA (Default: < 20 mA)
Test Voltage
Test voltage (input/output/supply): AC 3 kV; 50 Hz; 1 min
Test voltage (input/analog output/supply): AC 3 kV; 50 … 60 Hz; 1 min
Insulation Parameters Per En 61010-1
Line-to-neutral conductor voltage (AC) max.: 300 V
Overvoltage category: II
Pollution degree: 2
Art der Isolierung (Eingang/Analogausgang/Versorgung): Reinforced insulation
Connection Data
Connection technology: Push-in CAGE CLAMP®
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inch
Cable type: Shielded cable
Physical Data
Width: 6 mm / 0.236 inch
Height: 94 mm / 3.701 inch
Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 0.000 MJ
Weight: 38.400 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -40 … 85 °C
Processing temperature: -25 … +50 °C
Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 10 K)
Relative humidity: 5 … 95 % (no condensation permissible)
Operating altitude (max.): 2000 m
Standards And Specifications
Conformity marking: CE
EMC immunity to interference: EN 61000-6-2
EMC emission of interference: EN 61000-6-3
Standards/Specifications: EN 61010-1 || EN 61373
Commercial Data
Packaging type: Bag
Country of origin Sales Organisation Germany: DE
GTIN: 4045454828493
Customs tariff number Sales Organisation Germany: 85437090300
