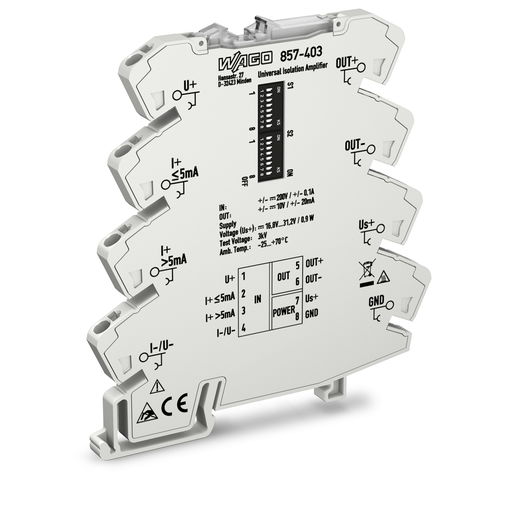

WAGO 857-403
WAGO 857-403
857-403 WAGO 857-403
OutOfStock
OutOfStock
Part #
857-403
Manufacturer
Wago
Condition
New
Quantity
Price
*Note:
Price:
$
507.40
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!
Isolation amplifier UI UI (BIP)
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
Isolation amplifier UI UI (BIP)
Features
Overload protection of current input via resettable fuse
Calibrated measurement range switching for all 456 signals
Unipolar/bipolar standard analog signals at both input/output
Switchable limit frequency
Clipping capability for analog signal limitation to output end values
Safe 3-way isolation with 2.5 kV test voltage per EN 61140
Specifications
Configuration
Configuration options: DIP switch
Input
Input signal type: Voltage || Current
Input signal (voltage): ±60 mV; 0 … 60 mV; ±100 mV; 0 … 100 mV; ±150 mV; 0 … 150 mV; ±300 mV; 0 … 300 mV; ±500 mV; 0 … 500 mV; ±1 V; 0 … 1 V; ±5 V; 0 … 5 V; 1 … 5 V; ±10 V; 0 … 10 V; 2 … 10 V; ±100 V; 0 … 100 V; ±200 V; 0 … 200 V
Input signal (current): ±0.3 mA; 0 … 0.3 mA; ±1 mA; 0 … 1 mA; ±5 mA; 0 … 5 mA; ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA; ±50 mA; 0 … 50 mA; ±100 mA; 0 … 100 mA
Input resistance (current input): 10 Ω (≥ 5 mA); 100 Ω (≤ 5 mA)
Input resistance (voltage input): 1 MΩ
Output – Analog
Output signal type: Current || Voltage
Output signal (voltage): ± 5 V; 0 … 5 V; 1 … 5 V; ± 10 V; 0 … 10 V; 2 … 10 V
Output signal (current): ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA
Load impedance (voltage output): ≥ 2 kΩ
Load impedance (current output): ≤ 600 Ω
Signal Processing
Limit frequency: 100 Hz / 5 kHz (configurable via DIP switch)
Step response (typ.): 3.5 ms (100 Hz); 100 µs (5 kHz)
Measurement Error
Transmission error (typ.): ≤ 0.08 % of upper-range value
Temperature coefficient: ≤ 0,01 %/K
Supply
Power supply type: 24 VDC
Nominal supply voltage US: DC 24 V
Supply voltage range: ±30 %
Power consumption at nominal supply voltage: ≤ 40 mA
Test Voltage
Test voltage (input/output/supply): AC 3 kV; 50 Hz; 1 min
Insulation Parameters Per En 61010-1
Insulation type (input/supply, analog output/relay output): Reinforced insulation
Connection Data
Connection technology: Push-in CAGE CLAMP®
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inch
Physical Data
Width: 6 mm / 0.236 inch
Height: 94 mm / 3.701 inch
Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 0.000 MJ
Weight: 39.892 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -40 … 85 °C
Temperature range of connecting cable per UL 61010-2-201 (min.): 90 °C
Relative humidity: 5 … 95 % (no condensation permissible)
Operating altitude (max.): 2000 m
Standards And Specifications
Conformity marking: CE
EMC immunity to interference: EN 61000-6-2
EMC emission of interference: EN 61000-6-4
Standards/Specifications: EN 61010-1
Commercial Data
Packaging type: Bag
Country of origin Sales Organisation Germany: DE
GTIN: 4055144057850
Customs tariff number Sales Organisation Germany: 85437090300
