WAGO
»
Electronics
»
Series 857
»
WAGO 857-402
WAGO 857-402
857-402 WAGO 857-402
OutOfStock
OutOfStock
Part #
857-402
Manufacturer
WAGO
GTIN
4050821099772
Condition
New
Quantity
Price
*Note:
Price:
$
383.42
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!

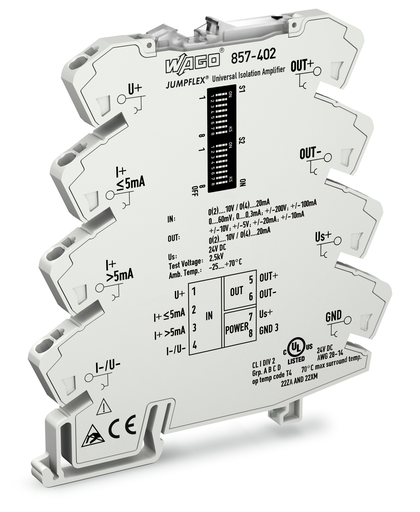

Universal Signal Conditioner
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
Universal Signal Conditioner
Features
Overload protection of current input via resettable fuse
Zero/span adjustment across the entire measurement range (via push/slide switch)
Calibrated measurement range switching for all 456 signals
Unipolar/bipolar standard analog signals at both input/output
Switchable limit frequency
Clipping capability for analog signal limitation to output end values
Safe 3-way isolation with 2.5 kV test voltage per EN 61140
Approvals
UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
Specifications
Configuration
Configuration options: DIP switch || Push/slide switch
Input
Input signal type: Voltage || Current
Input signal (voltage): ±60 mV; 0 … 60 mV; ±100 mV; 0 … 100 mV; ±150 mV; 0 … 150 mV; ±300 mV; 0 … 300 mV; ±500 mV; 0 … 500 mV; ±1 V; 0 … 1 V; ±5 V; 0 … 5 V; 1 … 5 V; ±10 V; 0 … 10 V; 2 … 10 V; ±100 V; 0 … 100 V; ±200 V; 0 … 200 V
Input signal (current): ±0.3 mA; 0 … 0.3 mA; ±1 mA; 0 … 1 mA; ±5 mA; 0 … 5 mA; ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA; ±50 mA; 0 … 50 mA; ±100 mA; 0 … 100 mA
Input resistance (current input): 10 Ω (≥ 5 mA); 100 Ω (≤ 5 mA)
Input resistance (voltage input): 1 MΩ
Zero/span adjustment: Adjustable via push/slide switch
Output – Analog
Output signal type: Current || Voltage
Output signal (voltage): ± 5 V; 0 … 5 V; 1 … 5 V; ± 10 V; 0 … 10 V; 2 … 10 V
Output signal (current): ±10 mA; 0 … 10 mA; 2 … 10 mA; ±20 mA; 0 … 20 mA; 4 … 20 mA
Load impedance (voltage output): ≥ 2 kΩ
Load impedance (current output): ≤ 600 Ω
Signal Processing
Limit frequency: 100 Hz / 5 kHz (configurable via DIP switch)
Step response (typ.): 3.5 ms (100 Hz); 100 µs (5 kHz)
Measurement Error
Transmission error (typ.): ≤ 0.08 % of upper-range value
Temperature coefficient: ≤ 0.01 %/K
Supply
Power supply type: 24 VDC
Nominal supply voltage US: DC 24 V
Supply voltage range: ±30 %
Power consumption at nominal supply voltage: ≤ 40 mA
Test Voltage
Test voltage (input/output/supply): AC 2.5 kV; 50 Hz; 1 min
Connection Data
Connection technology: Push-in CAGE CLAMP®
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inch
Physical Data
Width: 6 mm / 0.236 inch
Height: 94 mm / 3.701 inch
Depth from upper edge of DIN-rail: 97.8 mm / 3.85 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 0.000 MJ
Weight: 38.400 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -40 … 85 °C
Relative humidity: 5 … 95 % (no condensation permissible)
Operating altitude (max.): 2000 m
Standards And Specifications
Conformity marking: CE
EMC immunity to interference: EN 61000-6-2
EMC emission of interference: EN 61000-6-4
Commercial Data
Packaging type: Bag
Country of origin Sales Organisation Germany: DE
GTIN: 4050821099772
Customs tariff number Sales Organisation Germany: 85437090300
