WAGO 857-359

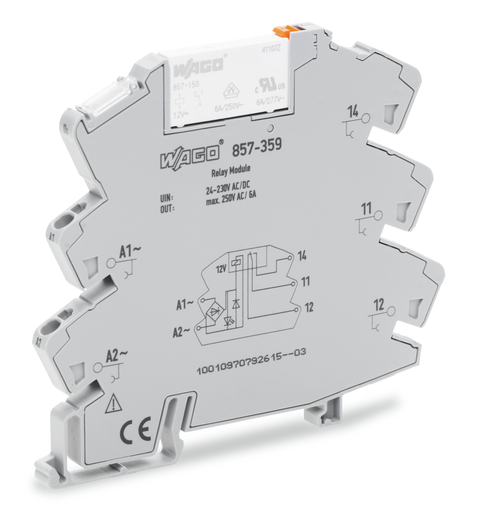

857-359 WAGO 857-359

WAGO 857-359
Part # 857-359
Condition New
Price: $ 40.98

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Socket with miniature switch. rel.
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Socket with miniature switch. rel.

Features

Approvals

  • UL International Netherlands B.V., UL, E175199 Sec.4, UL 508

Specifications

Notes

  • Note: To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Control Circuit

  • Nominal input voltage UN: AC/DC 24 … 230 V
  • Input voltage range: -30 … +10 %
  • Nominal input current at UN: 3.5 mA (230 VAC); 20 mA (24 VDC)

Load Circuit

  • Number of changeover/switchover contacts: 1
  • Contact material (relay): AgSnO2
  • Limiting continuous current: 6 A
  • Inrush current (resistive) (max.): (AC) 20 A / 0.02 s
  • Switching voltage (max.): AC 250 V
  • Switching power (resistive) (max.): AC 1500 VA; DC (see load limit curve)
  • Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
  • Recommended minimum load: 10 V / 10 mA; 24 V / 1 mA
  • Pull-in time (typ.): 15 ms
  • Drop-out time (typ.): 25 ms
  • Bounce time (typ.): 3.5 ms
  • Electrical life (NO; resistive load; 23 °C): 50 x 103 switching operations
  • Mechanical life: 5 x 106 switching operations
  • Switching frequency with/without load (max.): 6 min-1 / 60 min-1

Signaling

  • Status indicator: Yellow LED

Safety And Protection

  • Rated voltage: 300 V
  • Rated surge voltage: 4 kV
  • Circuit type: Mains circuits
  • Overvoltage category: III
  • Pollution degree: 2
  • Dielectric strength, control/load circuit (AC, 1 min): 3.51 kVrms
  • Dielectric strength, open contact (AC, 1 min): 1 kVrms
  • Insulation type (control/load circuit): Reinforced insulation (safe isolation)
  • Insulation type (between adjacent devices of the the same type): Reinforced insulation (safe isolation)
  • Protection type: IP20

Connection Data

  • Connection technology: Push-in CAGE CLAMP®
  • Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 6 mm / 0.236 inch
  • Height: 94 mm / 3.701 inch
  • Depth from upper edge of DIN-rail: 81 mm / 3.189 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Fire load: 0.000 MJ
  • Weight: 30.877 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -25 … 70 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 85 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 50121-3-2 || EN 61010-2-201 || EN 61810-1 || EN 61373 || EN 61000-6-2 || EN 61000-6-3 || EN 50121-3 || UL 508

Basic Relay

  • WAGO Basic Relay: 857-150

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821856689
  • Customs tariff number Sales Organisation Germany: 85364900990
: *
: *
: *
