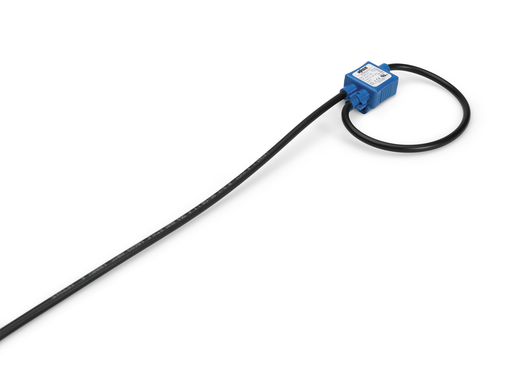

WAGO 855-9150/2000-701

855-9150/2000-701 WAGO 855-9150/2000-701

WAGO 855-9150/2000-701
Part # 855-9150/2000-701
Condition New
Price: $ 449.66

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Rogowski coil; RT 4000; Diameter 70 mm; 1.5 m; Bayonet connector; for cable tie
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Rogowski coil; RT 4000; Diameter 70 mm; 1.5 m; Bayonet connector; for cable tie

Features

Approvals

  • Underwriters Laboratories Inc., UL, E499682, UL 61010-2-032

Specifications

Notes

  • Note: The specifications for the primary rated current refer to a combination with the WAGO Modules (857-552 and 750-495/000-002).Rogowski technology allows the coils to measure a wide primary current range of up to 10,000 A without loss of accuracy, because there are no saturation effects.The requirements for standards EN 61869-1, EN 61869-2, EN 61869-6 and EN 61869-10 are only partially met, as there are fundamental differences with current transformers for a Rogowski coil.

Input

  • Measurement range: 10 A ... 10000 A (up to 4000 A in combination with the recommended WAGO products)

Input – Current Transformer

  • Primary rated current: 1000 A
  • Rated short-time thermal current Ith: 300 kA at 50 Hz
  • Rated frequency: 50 … 60 Hz
  • Mutual inductance M: 71.98 nH

Output – Analog

  • Sensitivity: 22.5 mV/kA at 50 Hz
  • Output signal (max.): 30 V

Signal Processing

  • Limit frequency: 420 kHz

Measurement Error

  • Accuracy class: 0.5
  • Übersetzungsfehler (Hinweis): Assuming that a primary conductor with a minimum diameter of 15mm is used that is routed perpendicular to and in contact with the coil.
  • Positioning error: ±0.75 %

Test Voltage

  • Voltage for isolation test: AC 7.4 kV; 50 Hz; 1 min

Connection Data

  • Feedthrough for measurement conductor: Ø 70 mm

Physical Data

  • Cable length: 1.5 m

Mechanical Data

  • Mounting type: Split-core current transformer (suspended)

Material Data

  • Fire load: 0.000 MJ
  • Weight: 130.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 80 °C
  • Surrounding air temperature (storage): -40 … 80 °C
  • Relative humidity: ≤ 90% (without condensation)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Conformity marking: CE
  • Standards/Specifications: EN 61010-1 || EN 61010-2-32 || EN 61869-1 || EN 61869-2 || EN 61869-6 || EN 61869-10 || UL 61010-1

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4055143419185
  • Customs tariff number Sales Organisation Germany: 90303370000
: *
: *
: *
