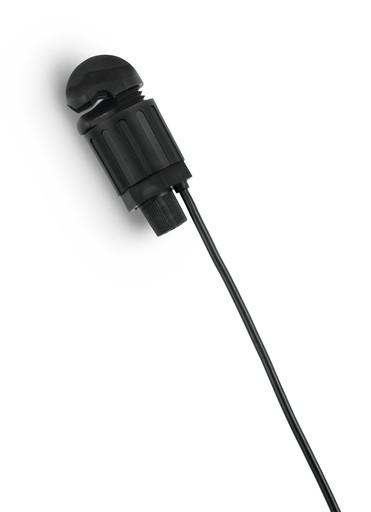

WAGO 855-8001

855-8001 WAGO 855-8001

WAGO 855-8001
Part # 855-8001
Condition New
Price: $ 88.87

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Voltage tap; with fuse; 12-10 AWG; Phase
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Voltage tap; with fuse; 12-10 AWG; Phase

Features

  • Safely tap the measurement voltage with just one turn
  • Tool-free assembly
  • Secure mounting
  • Voltage taps (855-8001 and 855-8003) include a (5 x 25) mm 2 A fuse
  • For insulated conductors up to 16 mm² (6 AWG)
  • Cable length: 3 m

Specifications

Notes

  • Note: Spare fuse: WAGO 855-8020

Output – Voltage Tap

  • Rated voltage: AC 400 V
  • Continuous current (max.): 2 A
  • Voltage drop at output (max.): ≤ AC 0.5 V
  • Fuse (voltage path): 2 A; 450 V; F; 70 kA; 5 x 25 mm (WAGO 855-8020)

Test Voltage

  • Test voltage: AC 3 kV; 50 Hz; 1 min

Connection Data

  • Connection technology: IDC
  • Solid conductor: 2.5 … 6 mm² / 14 … 10 AWG
  • Fine-stranded conductor: 2.5 … 6 mm² / 14 … 10 AWG
  • Feedthrough for measurement conductor: Ø 3 … 5 mm
  • Cable type: Secondary side: 1 x 1.0 mm²; flexible; with ferrule

Physical Data

  • Width: 23 mm / 0.906 inch
  • Height: 59 mm / 2.323 inch
  • Depth: 23 mm / 0.906 inch
  • Cable length: 3 m

Mechanical Data

  • Mounting type: Insulation displacement connection (IDC) || Mounting on insulated round cable
  • Torque range: 1.5 … 2 Nm
  • Usability: Can be reused several times (max. 24 times)

Material Data

  • Flammability class per UL94: V2
  • Housing material: PA 66
  • Fire load: 0.000 MJ
  • Weight: 25.900 g

Environmental Requirements

  • Surrounding air temperature (operation): -5 … 55 °C
  • Surrounding air temperature (storage): -20 … 70 °C
  • Relative humidity: 5 … 85 % (without condensation)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Conformity marking: CE
  • Standards/Specifications: EN 60947-7-1

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: NL
  • GTIN: 4055143371780
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
