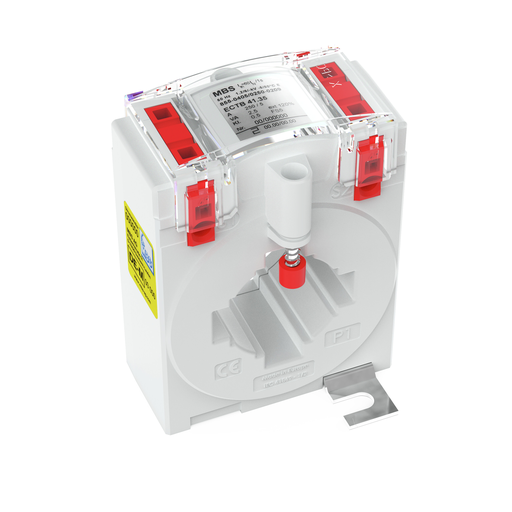

Features

• Schraubenlose Anschlusstechnik mit CAGE-CLAMP®-Anschluss
• Verschiedene Montagemöglichkeiten
• Schockfest und rüttelsicher
• Hohe mechanische Haltekräfte
• Hohe Stromfestigkeit
• Ständig mit 120 % des primären Nennstroms überlastbar
• Niederspannungsstromwandler für Betriebsspannungen bis max. 1,2 kV
• Einsatz in 690 V-Netzen
• Zubehör: 879-3040; Energiezähler; mit Push-in CAGE CLAMP® und Hebel; Wandleranschluss (2PCT)

Specifications

Input – Current Transformer

• Primary rated current: 300 A
• Rated continuous thermal current Icth: 1.2 x IN (AC)
• Rated short-time thermal current Ith: 60 x IN / 1 s (max. 100 kA / 1 s)
• Overcurrent limiting factor: FS5 / FS10 (type dependent; see type plate inscription)
• Rated frequency: 50 … 60 Hz

Output – Current Transformer

• Secondary rated current: 5 A
• Rated power Sr: 5 VA

Measurement Error

• Accuracy class: 0.5

Test Voltage

• Test voltage: AC 6 kV; 50 Hz; 1 min

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 70 mm / 2.756 inch
• Height: 91.15 mm / 3.589 inch
• Depth: 52 mm / 2.047 inch

Mechanical Data

• Mounting type: Closed current transformer || Installation on mounting plate || Mounting on DIN-rail via DIN-rail adapter || Mounting on round cable

Material Data

• Insulation class: E
• Fire load: 0.000 MJ
• Weight: 230.000 g

Environmental Requirements

• Surrounding air temperature (operation): -5 … 50 °C
• Surrounding air temperature (storage): -25 … 70 °C
• Operating altitude (max.): 1000 m

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 61869-1 || EN 61869-2

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055144041620
• Customs tariff number Sales Organisation Germany: 85043129900
