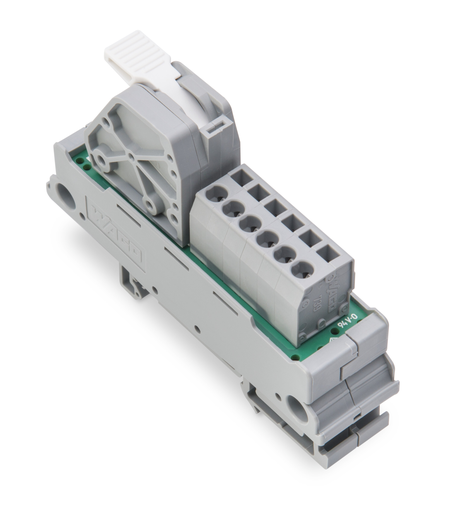

Specifications

Electrical Data

• Operating voltage: ≤ AC/DC 250 V
• Current per connection (max.): 12 A
• Total current per potential (max.): 65 A

Connection Data

• Total number of potentials: 1
• Connection type (1): Input
• Mating direction: 30°
• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 2716 Series
• Solid conductor: 1.5 … 16 mm² / 16 … 6 AWG
• Fine-stranded conductor: 1.5 … 16 mm² / 16 … 6 AWG
• Strip length: 12 … 13 mm / 0.47 … 0.51 inch
• Connection type 2: Output
• Mating direction (2): 45°
• Connection technology 2: CAGE CLAMP®
• WAGO Connector 2: WAGO 739 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 21 mm / 0.81 inch
• Height from upper-edge of DIN-rail: 49 mm / 1.929 inch
• Depth: 85 mm / 3.35 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: Mounting carrier

Material Data

• Fire load: 0.764 MJ
• Weight: 57.760 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C
• Relative humidity: ≤ 95% (without condensation)

Standards And Specifications

• Standards/Specifications: CULus 61010-2-201

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: US
• GTIN: 4055143379366
• Customs tariff number Sales Organisation Germany: 85369010000
