WAGO 792-802

792-802 WAGO 792-802

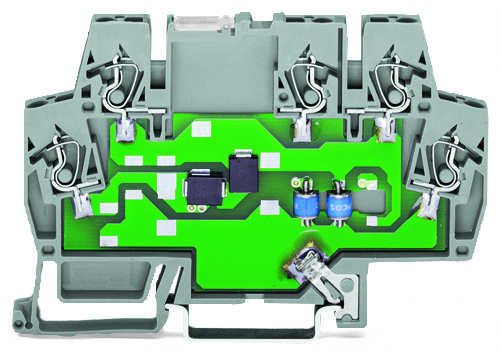

WAGO 792-802
Part # 792-802
Manufacturer WAGO
Condition New
Price: $ 128.83

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SD24 SURGE PROTECTION
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Surge protection for terminal blocks for protection of supply lines it sd 24

Features

  • Protect your system against overvoltage
  • Slim, space-saving design
  • Control operational costs by preventing expensive, unplanned downtime
  • High operational reliability and system uptime

Specifications

Notes

  • Note: The coordination characteristics of the surge arrester provide information about its discharge capacity and protection capability.

Electrical Data

  • Nominal operating voltage: DC 24 V
  • Continuous operating voltage (max.): AC 23 V / DC 33 V
  • Nominal current: 10 A
  • Nominal discharge current (8/20 µs), line: 300 A
  • Nominal discharge current (8/20 µs) (total): 5 kA
  • Protection level (line/line) (cat. C2 at IN): ≤ 50 V
  • Protection level (line/protected ground) (cat. C2 at IN): ≤ 750 V
  • Protection level (line/line) (cat. C3 at IN): ≤ 45 V
  • Protection level (line/protected ground) (cat. C3 at IN): ≤ 650 V
  • Response time (line/line): ≤ 1 ns
  • Response time (line/protected ground): ≤ 100 ns
  • Limit frequency (line/line): 7 MHz
  • Capacitance (line/line): ≤ 10 nF
  • Capacitance (line/protected ground): ≤ 12 pF

Safety And Protection

  • Protection type: IP00
  • Protection class with end and intermediate plate: IP20

Connection Data

  • Connection points (number): 5
  • Connection technology: CAGE CLAMP®
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

  • Width: 6 mm / 0.236 inch
  • Height from upper-edge of DIN-rail: 56 mm / 2.205 inch
  • Depth: 91 mm / 3.583 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Fire load: 0.000 MJ
  • Weight: 38.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 80 °C
  • Surrounding air temperature (storage): -40 … 80 °C

Standards And Specifications

  • Standards/Specifications: IEC 61643-21

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4017332780759
  • Customs tariff number Sales Organisation Germany: 85363010900
: *
: *
: *
