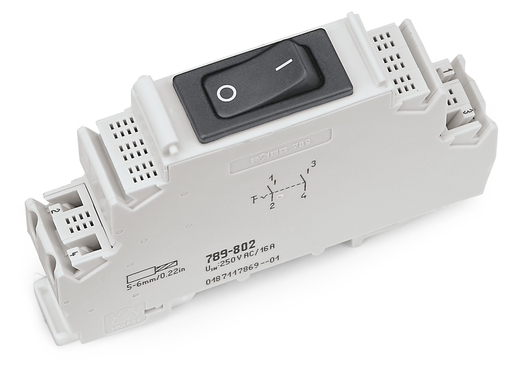

Specifications

Electrical Data

• Operating voltage: ≤250 VAC
• Switching current (resistive) (max.): 16 A
• Inrush current (max.): 100 A (Capacitive)
• Switching voltage (max.): AC 250 V
• Contact resistance: ≤ 100 mΩ (12 V/1 ADC; New condition)
• Insulation resistance: ≥ 100 MΩ (500 VDC; New condition)
• Contact gap: ≥ 3 mm
• Electrical life (NO; resistive load; 23 °C): 10 x 103 switching operations
• Mechanical life: 50 x 103 switching operations

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 2
• Dielectric strength, open contact (AC, 1 min): 1.25 kVrms

Connection Data

• Connection technology: CAGE CLAMP®
• Solid conductor: 02 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 17.5 mm / 0.689 inch
• Height: 90 mm / 3.543 inch
• Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: DIN-rail-mount enclosure

Material Data

• Contact material (switch): Ag alloy
• Fire load: 6.220 MJ
• Weight: 45.906 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -20 … 55 °C
• Surrounding air temperature (storage): -40 … 80 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821274810
• Customs tariff number Sales Organisation Germany: 85365080900
