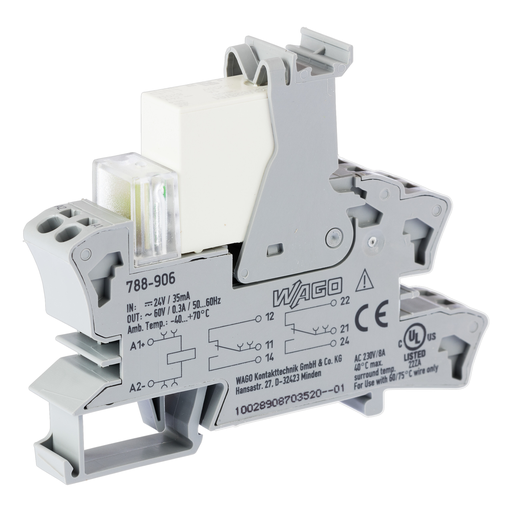

Safety information 1: Per EN 61810-3, it is only permitted to use 1 make contact/1 break contact for safety circuits (11-14 and 22-21 or 12-11 and 21-24).A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
Note: Reinforced insulation between coil and contactsTo protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
Control Circuit
Nominal input voltage UN: DC 24 V
Input voltage range: -15 … +10 %
Nominal input current at UN: 30 mA
Load Circuit
Number of changeover/switchover contacts: 2
Contact material (relay): AgNi + Au
Limiting continuous current: 0.3 A
Switching voltage (max.): AC 60 V
Switching power (resistive) (max.): AC 18 VA
Recommended minimum load: 0.1 V / 1 mA / 1 mW
Pull-in time (typ.): 15 ms
Drop-out time (typ.): 12 ms
Electrical life (NO; resistive load; 23 °C): 200 x 103 switching operations
Mechanical life: 50 x 106 switching operations
Switching frequency with/without load (max.): 6 min-1 / 600 min-1
Safety information 1: Per EN 61810-3, it is only permitted to use 1 make contact/1 break contact for safety circuits (11-14 and 22-21 or 12-11 and 21-24).A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
