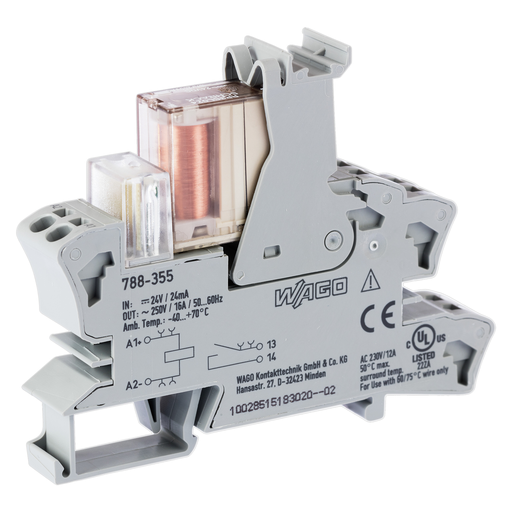

Relay socket with relay rp3sl 1 make contact DC 24 V
Features
Approvals
UL International Netherlands B.V., UL, E175199 Sec.6, UL 508
Specifications
Notes
Safety information 1: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
Note: Reinforced insulation between coil and contactsTo protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
Control Circuit
Nominal input voltage UN: DC 24 V
Input voltage range: -15 … +20 %
Nominal input current at UN: 21.8 mA
Load Circuit
Number of make/switch-on contacts: 1
Contact material (relay): AgSnO2
Limiting continuous current: 16 A
Inrush current (resistive) (max.): (AC) 120 A / 0.02 s; (AC) 25 A / 4 s
Switching voltage (max.): AC 250 V
Switching power (resistive) (max.): AC 4000 VA; DC (see load limit curve)
Dielectric strength, open contact (AC, 1 min): 1 kVrms
Safety information 1: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
