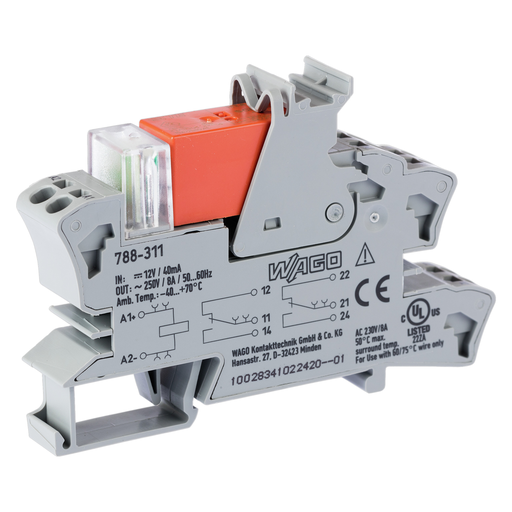

Relay socket with relay and status indicator 2 changeover contacts DC 12 V
Features
Approvals
UL International Netherlands B.V., UL, E175199 Sec.6, UL 508
Specifications
Notes
Safety information 1: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
Note: Reinforced insulation between coil and contactsTo protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
Control Circuit
Nominal input voltage UN: DC 12 V
Input voltage range: ±10 %
Nominal input current at UN: 36 mA
Load Circuit
Number of changeover/switchover contacts: 2
Contact material (relay): AgNi 90/10
Limiting continuous current: 8 A
Inrush current (resistive) (max.): (AC) 15 A / 4 s
Switching voltage (max.): AC 250 V
Switching power (resistive) (max.): AC 2000 VA; DC (see load limit curve)
Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
Recommended minimum load: 12 V / 10 mA
Pull-in time (typ.): 8 ms
Drop-out time (typ.): 13 ms
Bounce time (typ.): 10 ms
Electrical life (NO; resistive load; 23 °C): 10 x 103 switching operations
Mechanical life: 30 x 106 switching operations
Switching frequency with/without load (max.): 6 min-1 / 1200 min-1
Safety information 1: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
