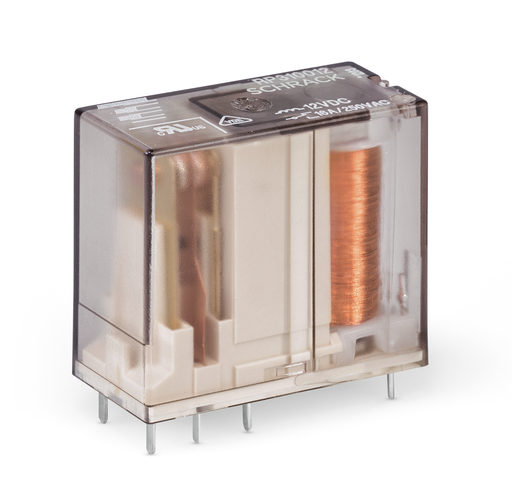

Specifications

Notes

• Note: To prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.

Control Circuit

• Nominal input voltage UN: AC 230 V

Load Circuit

• Number of changeover/switchover contacts: 2
• Contact material (relay): AgNi + Au
• Limiting continuous current: 8 A
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 2000 VA; DC (see load limit curve)
• Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
• Recommended minimum load: 5 V / 2 mA / 50 mW
• Pull-in time (typ.): 7 ms
• Drop-out time (typ.): 3 ms
• Electrical life (NO; resistive load; 23 °C): 10 x 103 switching operations
• Mechanical life: 30 x 106 switching operations

Safety And Protection

• Dielectric strength, control/load circuit (AC, 1 min): 5 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Dielectric strength, load/load circuit (AC, 1 min): 2.5 kVrms

Physical Data

• Width: 12.7 mm / 0.5 inch
• Height from the surface: 15.7 mm / 0.618 inch
• Depth: 29 mm / 1.142 inch

Mechanical Data

• Mounting type: Pluggable module

Material Data

• Fire load: 0.191 MJ
• Weight: 12.700 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C

Standards And Specifications

• Standards/Specifications: EN 61810-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821867937
• Customs tariff number Sales Organisation Germany: 85364900990
