WAGO 788-100

788-100 WAGO 788-100

WAGO 788-100
Part # 788-100
Manufacturer WAGO
GTIN 4050821591764
Condition New
Price: $ 7.63

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

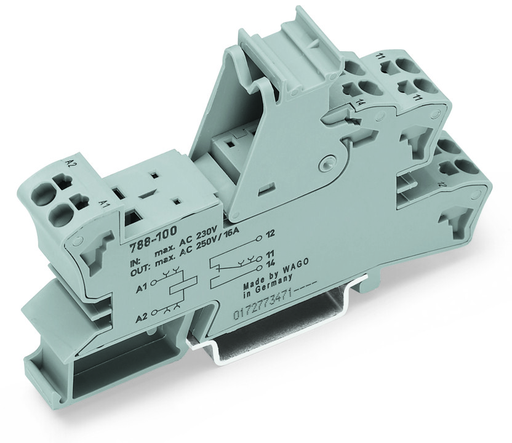

RELAY SOCKET ONLY-SCHRACK RT15 SP DT
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Socket without relay switching relay RS 15 1 changeover contact

Specifications

Notes

  • Note: Bei den angegebenen technischen Daten handelt es sich um Maximalwerte. Diese können durch das verwendete Zubehör eingeschränkt werden.

Control Circuit

  • Nominal input voltage UN: AC/DC 230 V
  • Input voltage range: AC/DC 0 … 250 V

Load Circuit

  • Number of changeover/switchover contacts: 1
  • Limiting continuous current: 16 A
  • Switching voltage (max.): AC 300 V

Safety And Protection

  • Rated voltage: 300 V
  • Overvoltage category: II
  • Pollution degree: 3
  • Dielectric strength, control/load circuit (AC, 1 min): 6 kVrms
  • Dielectric strength, open contact (AC, 1 min): 1 kVrms
  • Insulation type (control/load circuit): Reinforced insulation (safe isolation)
  • Insulation type (between adjacent devices of the the same type): Basic insulation
  • Protection type: IP20

Connection Data

  • Connection technology: Push-in CAGE CLAMP®
  • Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 15 mm / 0.591 inch
  • Height: 86 mm / 3.386 inch
  • Depth from upper edge of DIN-rail: 54 mm / 2.126 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Gray
  • Fire load: 0.000 MJ
  • Weight: 31.250 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 80 °C
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 61010-2-201

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4050821591764
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
