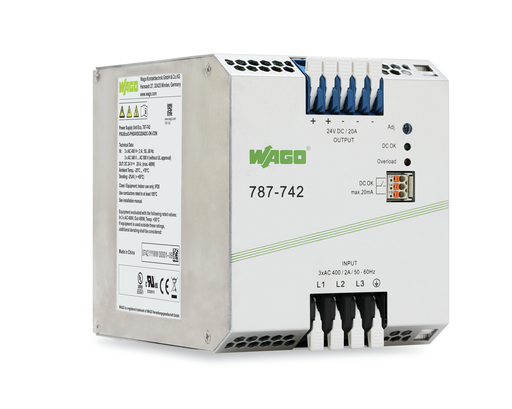

EPSITRON® ECO power supply; three-phase; output voltage 24 VDC; 20 A
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
EPSITRON® ECO power supply; three-phase; output voltage 24 VDC; 20 A
Features
Natural convection cooling when horizontally mounted
Encapsulated for use in control cabinets
Fast and tool-free termination via lever-actuated PCB terminal blocks
Bounce-free switching signal (DC OK) via optocoupler
Parallel operation
Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204
Approvals
Underwriters Laboratories Inc., UL, E255817, UL 508
Underwriters Laboratories Inc., UL, E255815, UL 60950-1
Specifications
Input
Phases: 2 || 3
Nominal input voltage Ui nom: (2 / 3) x AC 400 … 500 V
Input voltage range: (2 / 3) x AC 360 … 575 V; DC 500 … 800 V
Nominal mains frequency range: 47 … 63 Hz; 0 Hz
Input current Ii: ≤ 3 x 2 A (400 VAC; 20 ADC)
Discharge current: ≤ 3.5 mA
Inrush current: ≤ 30 A
Power factor: ≥ 0.5
Power factor correction (PFC): Passive
Mains failure hold-up time: ≥ 17 ms (3 x 400 VAC)
Output
Nominal output voltage Uo nom: DC 24 V (SELV)
Output voltage range: DC 22 … 28 V (adjustable)
Default setting: DC 24 V
Nominal output current Io nom: 20 A (24 VDC)
Nominal output power: 480 W
Control deviation: ≤ 1 %
Residual ripple: ≤ 100 mV (Peak-to-peak)
Overload behavior: Constant power (in overload range: 1.15 … 1.4 x Io nom); Shutdown and automatic restart in the event of a short circuit
Signaling And Communication
Signaling: 1 x LED DC OK (green) || 1 x Overload LED (red) || 1 x DC OK signal output (optocoupler as make contact; max. 31.2 V; 20 mA)
Operation status indicator: Green LED (Uo) || Red LED (overload)
Efficiency/Power Losses
Power loss Pl: ≤ 50 W
Power loss (max.) Pl (max.): 55 W
Efficiency (typ.): 90 %
Circuit Protection
Internal fuse: 3 x T 5 A / 250 VAC
Required backup fusing: An external DC fuse is required for the DC input voltage.
Recommended backup fusing: 3 x circuit breaker ≥ 6 A; Tripping characteristic: B or C || Alternative: motor circuit breaker
Safety And Protection
Isolation voltage (Pri.-Sec.): DC 4.242 kV
Isolation voltage (Pri.-GND): DC 2.2 kV
Isolation voltage (Sec.-GND): DC 0.7 kV
Isolation voltage (Sec.-Signal): DC 0.7 kV
Protection class: I
Protection type: IP20 (per EN 60529)
Resistance to reverse feed: ≤ DC 30 V
Overvoltage category: II
Pollution degree: 2
Transient suppression (primary): Varistor
Short-circuit-protected: Yes
Open-circuit-proof: Yes
Parallel operation: Yes
Series operation: Yes
MTBF: > 250,000 h (per IEC 61709)
Connection Data
Connection type (1): Input/output
Connection technology: Push-in CAGE CLAMP®
WAGO Connector: WAGO 2706 Series
Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
Strip length: 11 … 12 mm / 0.43 … 0.47 inch
Connection type 2: Signaling
Connection technology 2: Push-in CAGE CLAMP®
WAGO Connector 2: picoMAX® 3.5 (WAGO 2091 Series)
Solid conductor 2: 0.2 … 1.5 mm² / 24 … 14 AWG
Fine-stranded conductor 2: 0.2 … 1.5 mm² / 24 … 14 AWG
Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch
Physical Data
Width: 110 mm / 4.331 inch
Height: 130 mm / 5.118 inch
Depth from upper edge of DIN-rail: 151 mm / 5.944 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 0.000 MJ
Weight: 1930.000 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -40 … 85 °C
Relative humidity: 10 … 95 % (no condensation permissible)
Derating: -2 %/K (> 50 °C; 400 VAC)
Standards And Specifications
Conformity marking: CE
Standards/Specifications: EN 62368-1 || EN 61204-3 (Class A) || UL 60950-1 || UL 508
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: CN
GTIN: 4050821848387
Customs tariff number Sales Organisation Germany: 85044082900
