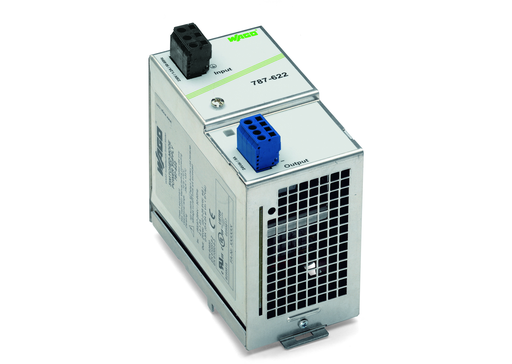

WAGO 787-622

787-622 WAGO 787-622

WAGO 787-622
Part # 787-622
Manufacturer WAGO
GTIN 4045454435349
Condition New
Price: $ 415.90

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
POWER SUPPLY-24VDC-5.0A
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Primary switch mode power supply units output voltage 24V dc 5 A

Features

  • Switched-mode power supply
  • Suitable for protection class I equipment
  • Suitable for both parallel and series operation
  • Natural convection cooling when horizontally mounted
  • Encapsulated for use in control cabinets
  • Electrically isolated output voltage (SELV) per EN 60950-1/UL 60950

Approvals

  • Underwriters Laboratories Inc., UL, E255815, UL 60950-1
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00002J6
  • Underwriters Laboratories Inc., UL, E255817, UL 508

Specifications

Input

  • Phases: 1
  • Nominal input voltage Ui nom: 1 x AC 100 … 240 V; DC 140 … 300 V
  • Input voltage range: AC 90 … 264 V; DC 130 … 300 V
  • Nominal mains frequency range: 50 … 60 Hz; 0 Hz
  • Input current Ii: ≤ 0.85 A (230 VAC)
  • Discharge current: ≤ 0.55 mA
  • Inrush current: ≤ 30 A
  • Power factor correction (PFC): Passive
  • Mains failure hold-up time: ≥ 20 ms (230 VAC)

Output

  • Nominal output voltage Uo nom: DC 24 V (SELV)
  • Output voltage range: DC 22 … 28.8 V (adjustable)
  • Default setting: DC 24 V
  • Nominal output current Io nom: 5 A (24 VDC)
  • Control deviation: ≤ 2 %
  • Residual ripple: ≤ 100 mV (Peak-to-peak)
  • Current limitation: 1.1 x Io nom (typ.)
  • Overload behavior: Constant current

Signaling And Communication

  • Operation status indicator: Green LED (24 V OK)

Efficiency/Power Losses

  • Power loss Pl: ≤ 10 W (230 VAC; No load)
  • Power loss (max.) Pl (max.): 13 W (90 VAC / 24 VDC; 5 A)
  • Efficiency (typ.): 90 %

Circuit Protection

  • Internal fuse: T 4 A / 250 VAC
  • Required backup fusing: An external DC fuse is required for the DC input voltage.
  • Recommended backup fusing: Circuit breaker: C10 or B10

Safety And Protection

  • Isolation voltage (Pri.-Sec.): DC 4.242 kV
  • Isolation voltage (Pri.-GND): DC 2.2 kV
  • Isolation voltage (Sec.-GND): DC 0.7 kV
  • Protection class: I
  • Protection type: IP20 (per EN 60529)
  • Resistance to reverse feed: ≤ DC 30 V
  • Pollution degree: 2
  • Transient suppression (primary): Varistor
  • Overvoltage protection; secondary: Internal protective circuit || ≤ 40 VDC (in the event of a fault)
  • Short-circuit-protected: Yes
  • Open-circuit-proof: Yes
  • Parallel operation: Yes
  • Series operation: Yes

Connection Data

  • Connection type (1): Input/output
  • Connection technology: CAGE CLAMP®
  • WAGO Connector: WAGO 231 Series
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

  • Width: 67 mm / 2.638 inch
  • Height from upper-edge of DIN-rail: 133 mm / 5.236 inch
  • Depth from upper edge of DIN-rail: 120 mm / 4.724 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Fire load: 4.800 MJ
  • Weight: 790.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -10 … 70 °C
  • Surrounding air temperature (storage): -25 … 85 °C
  • Relative humidity: 30 … 85 % (no condensation permissible)
  • Derating: -3 %/K (> 50 °C)

Standards And Specifications

  • Conformity marking: CE
  • Standards/Specifications: EN 60950-1 || EN 61204-3 || UL 60950 || UL 508 || GL

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454435349
  • Customs tariff number Sales Organisation Germany: 85044082900
: *
: *
: *
