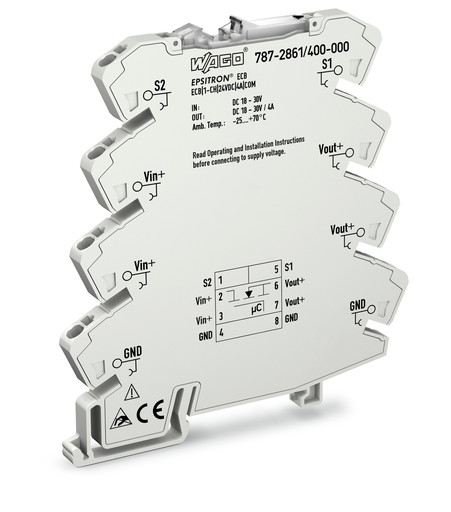

EPSITRON® electronic circuit breaker; 1-channel; 24 VDC; 4 A
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
EPSITRON® electronic circuit breaker; 1-channel; 24 VDC; 4 A

Features

  • Space-saving ECB with one channel
  • Reliably and safely trips in the event of an overload and short circuit on the secondary side
  • Switch-on capacity > 50,000 μF
  • Enables the use of an economical, standard power supply
  • Minimizes wiring via two voltage outputs and maximizes commoning options on both input and output sides (e.g., commoning of the output voltage on 857 and 2857 Series devices)
  • Status signal – adjustable as single or group message
  • Reset, switch on/off via remote input or local switch
  • Prevents power supply overload due to total inrush current thanks to time-delayed switching on during interconnected operation

Approvals

  • Underwriters Laboratories Inc., UL, E175199 Vol.3 Sec.2 Series 0787 ECB, UL 2367
  • Underwriters Laboratories Inc., UL, E175199 Vol.3 Sec.2 Series 0787 ECB, UL 61010-2-201
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1, DNVGL-CG-339,Dec.2019

Specifications

Input

  • Nominal input voltage Ui nom: DC 24 V
  • Input voltage range: DC 18 … 30 V

Output

  • Total number of channels (module): 1
  • Nominal output voltage Uo nom: 1 x DC 24 V
  • Output voltage range: DC 18 … 30 V (Ue − voltage drop)
  • Voltage drop: ≤ 25 mV
  • Nominal output current Io nom: 1 x 4 A (Fixed setting)
  • Switch-on capacity: > 50000 µF per channel
  • Switch-on behavior: Time-delayed channel switching (load-dependent, min. 170 ms/max. 500 ms)
  • Active current limitation: No

Signaling And Communication

  • Signaling: 1 x Status LED (green/yellow/red/blue) || 1 x Control input || 1 x Active signal output (Ui, max. 4 mA)
  • Operation status indicator: Green LED (channel OK) || Red LED (tripped channel)
  • Remote input: 18 … 30 VDC signal, switches on/off and resets the channel

Efficiency/Power Losses

  • Power loss Pl: ≤ 0.36 W (No load)
  • Efficiency (typ.): 96 %

Circuit Protection

  • Internal fuse: T 15 A

Safety And Protection

  • Isolation voltage (connectors – housing): DC 0.5 kV
  • Protection class: III
  • Protection type: IP20 (per EN 60529)
  • Reverse voltage protection: No
  • Pollution degree: 2
  • Transient suppression (primary): Suppressor diode (33 V)
  • Parallel operation of single channels: Not permitted
  • Series operation: No
  • MTBF: 1,258,733 h (per MIL-HDBK-217F2)

Connection Data

  • Number of jumper slots: 8
  • Connection technology: Push-in CAGE CLAMP®
  • WAGO Connector: WAGO 857 Series
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 6 mm / 0.236 inch
  • Height from upper-edge of DIN-rail: 97.8 mm / 3.85 inch
  • Depth: 94 mm / 3.701 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Fire load: 0.405 MJ
  • Weight: 38.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 70 °C (Device starts at −40 °C (type-tested))
  • Surrounding air temperature (storage): -40 … 85 °C
  • Relative humidity: 10 … 95 % (no condensation permissible)
  • Derating: No derating

Standards And Specifications

  • Conformity marking: CE
  • Standards/Specifications: EN 61000-6-2 || EN 61000-6-3 || UL 61010-2-201 || DNV GL

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143533591
  • Customs tariff number Sales Organisation Germany: 85363010900
: *
: *
: *
