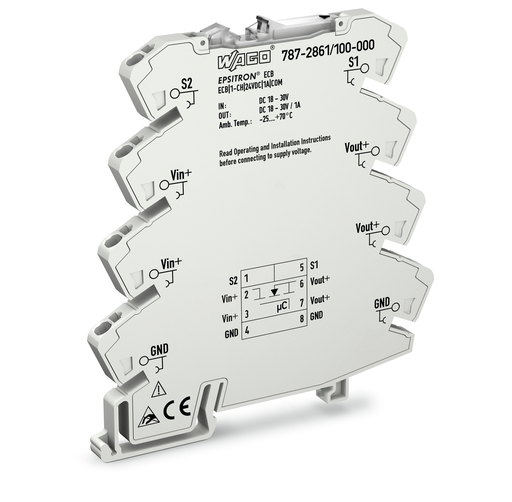

Features

• Space-saving ECB with one channel
• Reliably and safely trips in the event of an overload and short circuit on the secondary side
• Switch-on capacity > 50,000 μF
• Enables the use of an economical, standard power supply
• Minimizes wiring via two voltage outputs and maximizes commoning options on both input and output sides (e.g., commoning of the output voltage on 857 and 2857 Series devices)
• Status signal – adjustable as single or group message
• Reset, switch on/off via remote input or local switch
• Prevents power supply overload due to total inrush current thanks to time-delayed switching on during interconnected operation

Approvals

• Underwriters Laboratories Inc., UL, E175199 Vol.3 Sec.2 Series 0787 ECB, UL 2367
• Underwriters Laboratories Inc., UL, E175199 Vol.3 Sec.2 Series 0787 ECB, UL 61010-2-201
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001D1, DNVGL-CG-339,Dec.2019

Specifications

Input

• Nominal input voltage Ui nom: DC 24 V
• Input voltage range: DC 18 … 30 V

Output

• Total number of channels (module): 1
• Nominal output voltage Uo nom: 1 x DC 24 V
• Output voltage range: DC 18 … 30 V (Ue − voltage drop)
• Voltage drop: ≤ 25 mV
• Nominal output current Io nom: 1 x 1 A (Fixed setting)
• Switch-on capacity: > 50000 µF per channel
• Switch-on behavior: Time-delayed channel switching (load-dependent, min. 170 ms/max. 500 ms)
• Active current limitation: No

Signaling And Communication

• Signaling: 1 x Status LED (green/yellow/red/blue) || 1 x Control input || 1 x Active signal output (Ui, max. 4 mA)
• Operation status indicator: Green LED (channel OK) || Red LED (tripped channel)
• Remote input: 18 … 30 VDC signal, switches on/off and resets the channel

Efficiency/Power Losses

• Power loss Pl: ≤ 0.36 W (No load)
• Efficiency (typ.): 96 %

Circuit Protection

• Internal fuse: T 15 A

Safety And Protection

• Isolation voltage (connectors – housing): DC 0.5 kV
• Protection class: III
• Protection type: IP20 (per EN 60529)
• Reverse voltage protection: No
• Pollution degree: 2
• Transient suppression (primary): Suppressor diode (33 V)
• Parallel operation of single channels: Not permitted
• Series operation: No
• MTBF: 1,263,074 h (per MIL-HDBK-217F2)

Connection Data

• Number of jumper slots: 8
• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: WAGO 857 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 6 mm / 0.236 inch
• Height from upper-edge of DIN-rail: 97.8 mm / 3.85 inch
• Depth: 94 mm / 3.701 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.405 MJ
• Weight: 53.620 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C (Device starts at −40 °C (type-tested))
• Surrounding air temperature (storage): -40 … 85 °C
• Relative humidity: 10 … 95 % (no condensation permissible)
• Derating: No derating

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 61000-6-2 || EN 61000-6-3 || UL 61010-2-201 || DNV GL

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143533249
• Customs tariff number Sales Organisation Germany: 85363010900
