EPSITRON® / JUMPFLEX® power supply; single-phase; 24 VDC; 1 A
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend

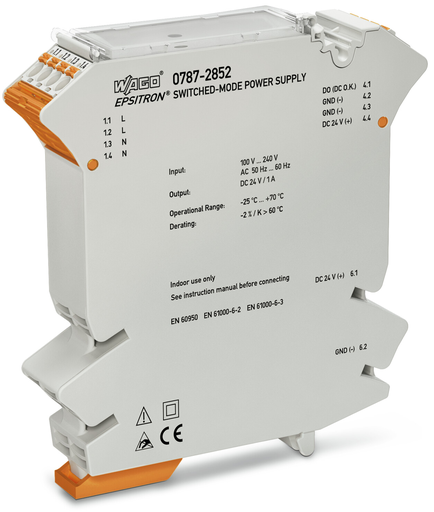

EPSITRON® / JUMPFLEX® power supply; single-phase; 24 VDC; 1 A
Features
Switched-mode power supply in 22.5 mm wide 2857 Series housing; device shares a common profile with the 2857 and 857 Series Signal Conditioners.
Both 24 VDC and 0 V output voltage can be easily supplied to adjacent modules via 859-4xx Jumpers.
Pluggable picoMAX® Connection Technology
Natural convection cooling
DC OK message as active signal output (24 VDC, 20 mA)
Integrated redundancy diode enables easy fail-safe power supply via parallel connection of two power supplies.
Approvals for worldwide applications
Approvals
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000154
Specifications
Input
Phases: 1
Nominal input voltage Ui nom: 1 x AC 100 … 240 V
Input voltage range: AC 85 … 264 V; DC 120 … 372 V
Nominal mains frequency range: 47 … 63 Hz; 0 Hz
Input current Ii: ≤ 0.28 A (240 VAC; Nominal load); ≤ 0.49 A (100 VAC; Nominal load)
Discharge current: ≤ 1 mA
Inrush current: ≤ 30 A
Power factor: ≥ 0.6 (230 VAC; Nominal load; per EN 61000-3-2)
Power factor correction (PFC): None
Mains failure hold-up time: ≥ 20 ms (100 VAC)
Output
Nominal output voltage Uo nom: DC 24 V (SELV)
Default setting: DC 24 V
Nominal output current Io nom: 1 A
Nominal output power: 24 W
Control deviation: ≤ 2 %
Deviation, dynamic load change 10 … 90 %: ≤ 1 %
Residual ripple: ≤ 100 mV (Peak-to-peak)
Current limitation: 1.1 x Io nom (typ.)
Overload behavior: Constant current
Signaling And Communication
Signaling: 1 x LED DC OK (green) || 1 x Overload LED (red) || 1 x Active signal output DC OK (24 VDC; 20 mA)
Operation status indicator: Green LED (Uo > 21.5 V) || Red LED (overload)
Efficiency/Power Losses
Power loss Pl: ≤ 1 W (230 VAC; No load); ≤ 4.3 W (230 VAC; Nominal load)
Power loss (max.) Pl (max.): 5 W (100 VAC / 24 VDC; 1 A)
Efficiency (typ.): 86 % (230 VAC; Nominal load); 84 % (110 VAC; Nominal load)
Circuit Protection
Internal fuse: T 2 A / 250 VAC
Recommended backup fusing: Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C
Safety And Protection
Isolation voltage (Pri.-Sec.): DC 4.242 kV
Protection class: II
Protection type: IP20 (per EN 60529)
Resistance to reverse feed: ≤ DC 60 V
Pollution degree: 2
Transient suppression (primary): Varistor
Overvoltage protection; secondary: Internal protective circuit || ≤ 29 … 31 VDC (in the event of a fault)
Short-circuit-protected: Yes
Open-circuit-proof: Yes
Parallel operation: Yes, for 2 devices of the same type
Series operation: Yes, for 2 devices of the same type
MTBF: > 500,000 h (at 25 °C per IEC 61709)
Connection Data
Number of jumper slots: 4
Connection type (1): Input/output/signaling
Connection technology: Push-in CAGE CLAMP®
WAGO Connector: picoMAX® 5.0
Solid conductor: 0.2 … 2.5 mm² / 24 … 10 AWG
Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 10 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inch
Physical Data
Width: 22.5 mm / 0.886 inch
Height from upper-edge of DIN-rail: 107 mm / 4.213 inch
Depth: 105 mm / 4.122 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 1.270 MJ
Weight: 200.000 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -25 … 85 °C
Relative humidity: 5 … 96 % (no condensation permissible)
Derating: -2 %/K (> 60 °C)
Standards And Specifications
Conformity marking: CE
Standards/Specifications: EN 61000-6-2 || EN 61000-6-3 || EN 60950-1 || DNV GL
Standards/Specifications (pending): UL 60950 || CULus 508 || ANSI-ISA 12.12.01 (Class I Div 2) || ATEX/IEC Ex
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: DE
GTIN: 4055143295529
Customs tariff number Sales Organisation Germany: 85044082900
