EPSITRON® electronic circuit breaker; 8-channel; 24 VDC; 8 x 10 A; messaging off
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend

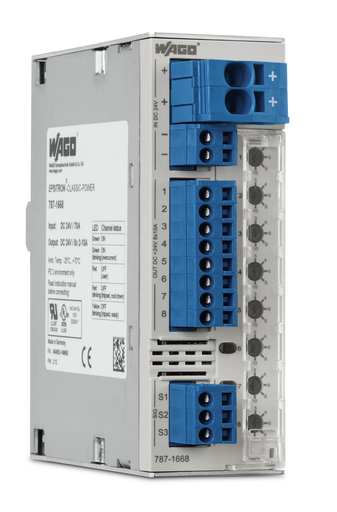

EPSITRON® electronic circuit breaker; 8-channel; 24 VDC; 8 x 10 A; messaging off
Features
Space-saving ECB with eight channels
Nominal current: 2 … 10 A (adjustable for each channel via sealable selector switch); Factory preset: 2 A (when switched off)
Switch-on capacity > 50000 μF per channel
One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics
Time-delayed switching of channels
Tripped and switched off message (common group signal S3)
Status message for each channel via pulse sequence
Remote input resets tripped channels or switches on/off any number of channels via pulse sequence
Approvals
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000281
Underwriters Laboratories Inc., UL, E255817, UL 508
Underwriters Laboratories Inc., UR, E363438, UL 2367
Specifications
Input
Nominal input voltage Ui nom: DC 24 V
Input voltage range: DC 18 … 30 V
Output
Total number of channels (module): 8
Nominal output voltage Uo nom: 8 x DC 24 V
Output voltage range: DC 18 … 30 V (Ue − voltage drop)
Voltage drop: ≤ 200 mV (Input (+))
Nominal output current Io nom: 8 x 2 / 3 / 4 / 6 / 8 / 10 A (Adjustable for each channel via selector switch)
Default setting: DC 2 A; switched off
Switch-on capacity: > 50000 µF per channel
Switch-on behavior: Time-delayed channel switching (load-dependent, min. 50 ms / max. 5 s)
Active current limitation: No
Signaling And Communication
Signaling: 8 x LED (green/red/orange) || 1 x Remote control input (S1) || 2 x Active signal output (S2; S3)
Operation status indicator: Green LED (channel OK) || Red LED (tripped channel)
Remote input: Reactivation of all tripped channels via 15 … 30 VDC pulse for min. 500 ms || Switching on/off any number of channels via pulse sequence
Efficiency/Power Losses
Power loss Pl: ≤ 1.3 W (No load); ≤ 20 W (8 x 10 A)
Efficiency (typ.): 99 %
Circuit Protection
Internal fuse: T 15 A per channel
Safety And Protection
Isolation voltage (connectors – housing): DC 0.5 kV
Protection class: III
Protection type: IP20 (per EN 60529)
Reverse voltage protection: No
Resistance to reverse feed: ≤ DC 35 V
Pollution degree: 2
Transient suppression (primary): Suppressor diode (33 V)
Parallel operation of single channels: Not permitted
Series operation: No
MTBF: > 500,000 h (per IEC 61709)
Connection Data
Connection type (1): Input (+)
Connection technology: Push-in CAGE CLAMP®
WAGO Connector: WAGO 831 Series
Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
Strip length: 13 … 15 mm / 0.51 … 0.59 inch
Connection type 2: Input (–); output; signaling
Connection technology 2: CAGE CLAMP®
WAGO Connector 2: WAGO 721 Series
Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch
Physical Data
Width: 42 mm / 1.654 inch
Height: 127 mm / 5 inch
Depth from upper edge of DIN-rail: 142.5 mm / 5.61 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 0.000 MJ
Weight: 420.000 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -25 … 85 °C
Relative humidity: 5 … 96 % (no condensation permissible)
Derating: ≥ 50 °C (see instruction manual)
Standards And Specifications
Conformity marking: CE
Standards/Specifications: EN 60950 || EN 61000-6-2 || EN 61000-6-3 || UL 508 || UL 2367 || DNV GL
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: DE
GTIN: 4050821804352
Customs tariff number Sales Organisation Germany: 85363010900
