WAGO 787-1662/000-100
WAGO 787-1662/000-100
787-1662/000-100 WAGO 787-1662/000-100
OutOfStock
OutOfStock
Part #
787-1662/000-100
Condition
New
Quantity
Price
*Note:
Price:
$
154.75
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!

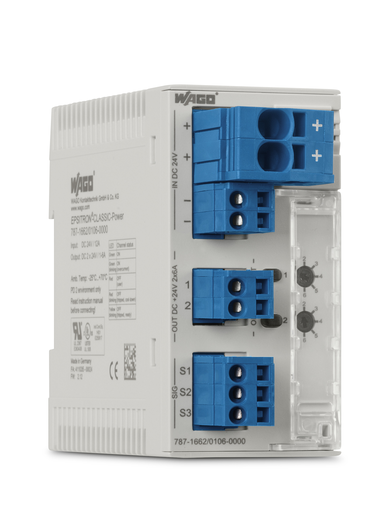

EPSITRON® electronic circuit breaker; 2-channel; 12 VDC; 2 ... 10 A
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
EPSITRON® electronic circuit breaker; 2-channel; 12 VDC; 2 ... 10 A
Features
Space-saving ECB with two channels
Nominal current: 2 … 10 A (adjustable for each channel via sealable selector switch)
Switch-on capacity > 50000 μF per channel
One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics
Time-delayed switching of channels
Tripped message (group signal)
Status message for each channel via pulse sequence
Remote input resets tripped channels or switches on/off any number of channels via pulse sequence
Specifications
Input
Nominal input voltage Ui nom: DC 12 V
Input voltage range: DC 10 … 16 V
Output
Total number of channels (module): 2
Nominal output voltage Uo nom: 2 x DC 12 V
Output voltage range: DC 10 … 16 V (Ue − voltage drop)
Voltage drop: ≤ 200 mV (Input (+))
Nominal output current Io nom: 2 x 2 / 3 / 4 / 6 / 8 / 10 A (Adjustable for each channel via selector switch)
Default setting: DC 10 A; switched on
Switch-on capacity: > 50000 µF per channel
Switch-on behavior: Time-delayed channel switching (load-dependent, min. 50 ms / max. 5 s)
Active current limitation: No
Signaling And Communication
Signaling: 2 x LED (green/red/orange) || 1 x Remote control input (S1) || 2 x Active signal output (S2; S3)
Operation status indicator: Green LED (channel OK) || Red LED (tripped channel)
Remote input: Reactivation of all tripped channels via 9 … 30 VDC pulse for min. 500 ms || Switching on/off any number of channels via pulse sequence
Efficiency/Power Losses
Power loss Pl: ≤ 0.53 W (No load); ≤ 5.5 W (2 x 10 A)
Efficiency (typ.): 99 %
Circuit Protection
Internal fuse: T 15 A per channel
Safety And Protection
Isolation voltage (connectors – housing): DC 0.5 kV
Protection class: III
Protection type: IP20 (per EN 60529)
Reverse voltage protection: No
Resistance to reverse feed: ≤ DC 35 V
Pollution degree: 2
Transient suppression (primary): Suppressor diode (33 V)
Parallel operation of single channels: Not permitted
Series operation: No
MTBF: > 500,000 h (per IEC 61709)
Connection Data
Connection type (1): Input (+)
Connection technology: Push-in CAGE CLAMP®
WAGO Connector: WAGO 831 Series
Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
Strip length: 13 … 15 mm / 0.51 … 0.59 inch
Connection type 2: Input (–); output; signaling
Connection technology 2: CAGE CLAMP®
WAGO Connector 2: WAGO 721 Series
Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch
Physical Data
Width: 45 mm / 1.772 inch
Height: 90 mm / 3.543 inch
Depth from upper edge of DIN-rail: 115.5 mm / 4.547 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 0.574 MJ
Weight: 170.000 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C
Surrounding air temperature (storage): -25 … 85 °C
Relative humidity: 5 … 96 % (no condensation permissible)
Derating: No derating
Standards And Specifications
Conformity marking: CE
Standards/Specifications: EN 60950 || EN 61000-6-2 || EN 61000-6-3 || UL 508 || UL 2367
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: DE
GTIN: 4055143373005
Customs tariff number Sales Organisation Germany: 85363010900
