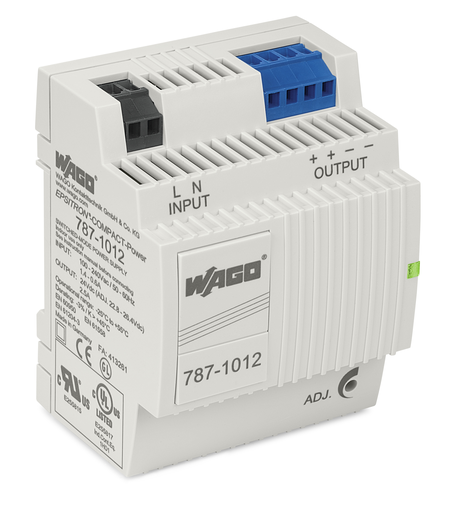

WAGO 787-1012

787-1012 WAGO 787-1012

WAGO 787-1012
Part # 787-1012
Manufacturer WAGO
GTIN 4050821297598
Condition New
Price: $ 134.40

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
COMPACT-POWER 1-PH, 2.5A, 24V DC
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
COMPACT-POWER 1-PH, 2.5A, 24V DC

Features

  • Switched-mode power supply
  • Natural convection cooling when horizontally mounted
  • Stepped profile, ideal for distribution boards/boxes
  • Overhead mounting is possible with derating
  • Suitable for both parallel and series operation
  • Electrically isolated output voltage (SELV) per EN 60950-1/UL 60950-1; PELV per EN 60204

Approvals

  • Underwriters Laboratories Inc., UL, E255815, UL 60950-1
  • Underwriters Laboratories Inc., UL, E255817, UL 508
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00000KT

Specifications

Input

  • Phases: 1
  • Nominal input voltage Ui nom: 1 x AC 100 … 240 V
  • Input voltage range: AC 85 … 264 V; DC 120 … 373 V
  • Input voltage derating: Io ≤ 2 A (< 100 VAC); Io ≤ 1.8 A (< 90 VAC)
  • Nominal mains frequency range: 44 … 66 Hz; 0 Hz
  • Input current Ii: ≤ 0.6 A (230 VAC); ≤ 1.4 A (110 VAC)
  • Discharge current: ≤ 1 mA
  • Inrush current: ≤ 30 A (NTC)
  • Power factor correction (PFC): Passive
  • Mains failure hold-up time: ≥ 80 ms (230 VAC); ≥ 10 ms (110 VAC)

Output

  • Nominal output voltage Uo nom: DC 24 V (SELV)
  • Output voltage range: DC 22.8 … 26.4 V (adjustable)
  • Default setting: DC 24 V
  • Nominal output current Io nom: 2.5 A (24 VDC); 1.6 A (in any mounting position)
  • Nominal output power: 60 W
  • Control deviation: ≤ 2 %
  • Residual ripple: ≤ 100 mV (Peak-to-peak)
  • Current limitation: 1.1 x Io nom (typ.)
  • Overload behavior: Constant current

Signaling And Communication

  • Signaling: 1 x Status indication LED (green)
  • Operation status indicator: Green LED (Uo)

Efficiency/Power Losses

  • Power loss Pl: ≤ 2.2 W (230 VAC; No load); ≤ 8.5 W (230 VAC; Nominal load)
  • Power loss (max.) Pl (max.): 10.5 W (100 VAC / 24 VDC; 2.5 A)
  • Efficiency (typ.): 88 %

Circuit Protection

  • Internal fuse: T 2 A / 250 VAC
  • Required backup fusing: An external DC fuse is required for the DC input voltage.
  • Recommended backup fusing: Circuit breaker: 6 A (C characteristic), 10 A (B characteristic) or higher

Safety And Protection

  • Isolation voltage (Pri.-Sec.): DC 4.242 kV
  • Protection class: II
  • Protection type: IP20 (per EN 60529)
  • Resistance to reverse feed: ≤ DC 30 V
  • Overvoltage category: II
  • Pollution degree: 2
  • Transient suppression (primary): Varistor
  • Overvoltage protection; secondary: ≤ 40 VDC (in the event of a fault)
  • Short-circuit-protected: Yes
  • Open-circuit-proof: Yes
  • Parallel operation: Yes
  • Series operation: Yes
  • MTBF: > 500,000 h (per IEC 61709)

Connection Data

  • Connection type (1): Input/output
  • Connection technology: CAGE CLAMP®
  • WAGO Connector: WAGO 740 Series
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length: 6 … 7 mm / 0.24 … 0.28 inch

Physical Data

  • Width: 72 mm / 2.835 inch
  • Height: 89 mm / 3.504 inch
  • Depth: 59 mm / 2.323 inch
  • Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Flammability class per UL94: V0
  • Fire load: 0.000 MJ
  • Weight: 255.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 60 °C (Device starts at −40 °C (type-tested))
  • Surrounding air temperature (storage): -25 … 80 °C
  • Surrounding air (operating) temperature for UL: -25 … 55 °C
  • Relative humidity: 5 … 96 % (no condensation permissible)
  • Derating: -3 %/K (> 45 °C)

Standards And Specifications

  • Conformity marking: CE
  • Standards/Specifications: EN 61010-1 || EN 61010-2-201 || EN 61204-3 || UL 60950-1 || UL 508 || DNV GL

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4050821297598
  • Customs tariff number Sales Organisation Germany: 85044082900
: *
: *
: *
