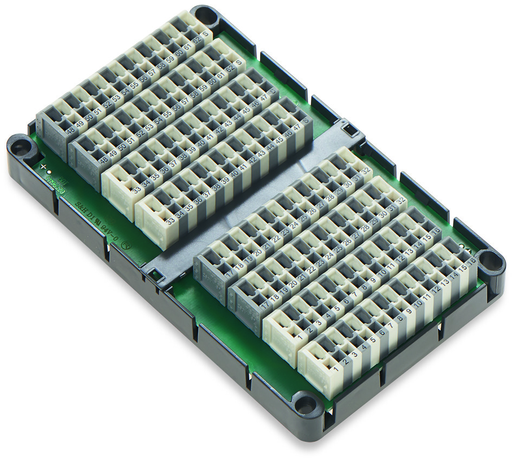

Specifications

Electrical Data

• Operating voltage: ≤ AC/DC 125 V
• Nominal current: 1 A
• Contact resistance (max.): 10 mΩ
• Specialty functions: With shield connection

Safety And Protection

• Rated voltage: 125 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2
• Protection type: IP20

Connection Data

• Pole No.: 62
• Connection type (1): System
• Pluggable connectors: HD D-sub male connector
• Mating direction: Vertical
• Connection type 2: Field
• Pole number 2: 64
• Connection technology 2: CAGE CLAMP®
• WAGO Connector 2: WAGO 739 Series
• Solid conductor 2: 0.08 … 1.5 mm² / 28 … 14 AWG
• Fine-stranded conductor 2: 0.08 … 1.5 mm² / 28 … 14 AWG
• Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
• Performance level: 2 / 400 mating cycles
• Strain relief: UNC 4-40 stud bolt

Physical Data

• Width: 80 mm / 3.15 inch
• Height: 27 mm / 1.062 inch
• Depth: 132 mm / 5.197 inch

Mechanical Data

• Mounting type: Module for 19” racks
• Housing design: Module for 19” racks

Material Data

• Contact material (connector): Au over Ni
• Fire load: 0.000 MJ
• Weight: 151.339 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 55 °C
• Surrounding air temperature (storage): -40 … 70 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454591915
• Customs tariff number Sales Organisation Germany: 85369010000
