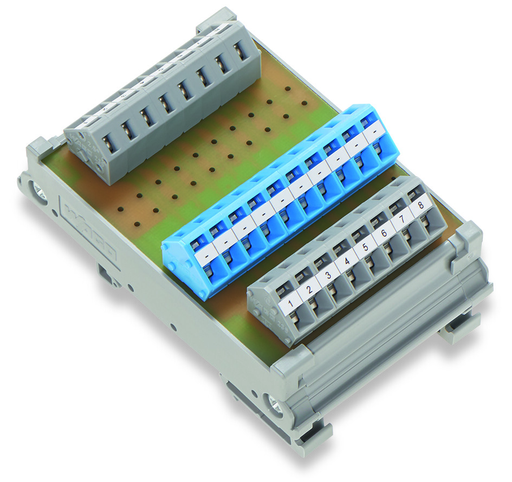

WAGO 289-667

289-667 WAGO 289-667

WAGO 289-667
Part # 289-667
Manufacturer WAGO
GTIN 4045454193331
Condition New
Price: $ 49.25

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
JUNCTION MODULE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Connection module for 8 Actuators

Specifications

Electrical Data

  • Inputs/outputs: 8-channel digital output
  • Circuit type: 2-wire connection
  • Operating voltage: ≤100 VAC; ≤125 VDC
  • Current per connection (max.): 1 A
  • Total current: 8 A

Safety And Protection

  • Rated voltage: 100 V
  • Rated surge voltage: 1.5 kV
  • Pollution degree: 2

Connection Data

  • Connection technology: CAGE CLAMP®
  • WAGO Connector: WAGO 236 Series
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

  • Width: 56 mm / 2.205 inch
  • Height: 85 mm / 3.346 inch
  • Depth from upper edge of DIN-rail: 34 mm / 1.339 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Housing design: Mounting carrier

Material Data

  • Fire load: 0.800 MJ
  • Weight: 63.991 g

Environmental Requirements

  • Surrounding air temperature (operation): -20 … 50 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Relative humidity: ≤ 85% (non-condensing)

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454193331
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
