WAGO 289-620

289-620 WAGO 289-620

WAGO 289-620
Part # 289-620
Manufacturer WAGO
GTIN 4045454362218
Condition New
Price: $ 85.69

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MALE D-SUB, 25-PIN W/TRIPLE DECK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

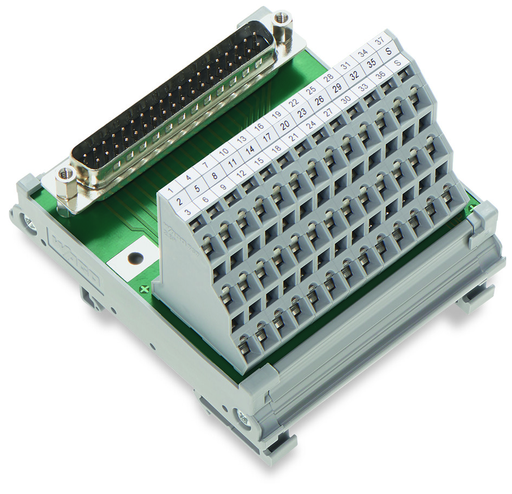

Interface module with sub miniature d-male connector 25 pole

Features

Approvals

  • Underwriters Laboratories Inc., UL, E175199 Vol.2 Sec.1, UL 508

Specifications

Electrical Data

  • Operating voltage: ≤ AC/DC 125 V
  • Nominal current: 2 A
  • Contact resistance (max.): 30 mΩ
  • Specialty functions: With shield connection

Safety And Protection

  • Rated voltage: 125 V
  • Pollution degree: 2
  • Overvoltage category: II
  • Protection type: IP20
  • Test voltage: AC 1.3 V; 60 Hz; 1 min
  • Dielectric strength, channel/channel (AC, 1 min.): 1.3 kVrms
  • Insulation type: Functional insulation

Insulation Parameters Per En/Ul 61010-2-201

  • Art der Isolierung: Basic insulation
  • Bemessungsspannung: 100 V

Connection Data

  • Pole No.: 25
  • Connection type (1): System
  • Pluggable connectors: D-sub male connector
  • For mating connector: With solder contact
  • Mating direction: Vertical
  • Connection type 2: Field
  • Pole number 2: 27
  • Design 2: PCB terminal blocks (triple-deck)
  • Connection technology 2: CAGE CLAMP®
  • WAGO Connector 2: WAGO 737 Series
  • Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
  • Note (conductor cross-section): 12 AWG: THHN, THWN
  • Performance level: 2 / 200 mating cycles
  • Strain relief: UNC 4-40 stud bolt

Physical Data

  • Width: 56 mm / 2.205 inch
  • Height: 85 mm / 3.346 inch
  • Depth from upper edge of DIN-rail: 62 mm / 2.441 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Housing design: Mounting carrier

Material Data

  • Contact material (connector): Au over Ni
  • Fire load: 0.800 MJ
  • Weight: 92.411 g

Environmental Requirements

  • Surrounding air temperature (operation): -20 … 50 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Relative humidity: ≤ 85% (non-condensing)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 61010-2-201

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454362218
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
