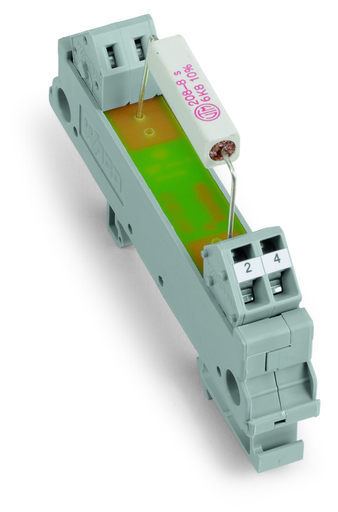

WAGO 289-128/001-000

289-128/001-000 WAGO 289-128/001-000

WAGO 289-128/001-000
Part # 289-128/001-000
Condition New
Price: $ 30.16

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
CM-R
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
CM-R

Specifications

Notes

  • Safety information 1: Depending on operating conditions, the components' temperature may exceed the limit temperature for accessible parts.
  • Note: Other resistors are available upon request!

Electrical Data

  • Resistor: 2K4
  • Tolerance: ±10 %
  • Temperature coefficient: 50 ppm (20 °C)
  • Component (P70) power dissipation: 5 W

Safety And Protection

  • Protection type: IP00*
  • Note on protection type: Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.

Connection Data

  • Connection technology: CAGE CLAMP®
  • WAGO Connector: WAGO 236 Series
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

  • Width: 13 mm / 0.512 inch
  • Height: 85 mm / 3.346 inch
  • Depth from upper edge of DIN-rail: 34 mm / 1.339 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Housing design: Mounting carrier

Material Data

  • Fire load: 0.310 MJ
  • Weight: 18.900 g

Environmental Requirements

  • Surrounding air temperature (operation): -20 … 70 °C (Derating must be observed)
  • Surrounding air temperature (storage): -40 … 70 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143311755
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
