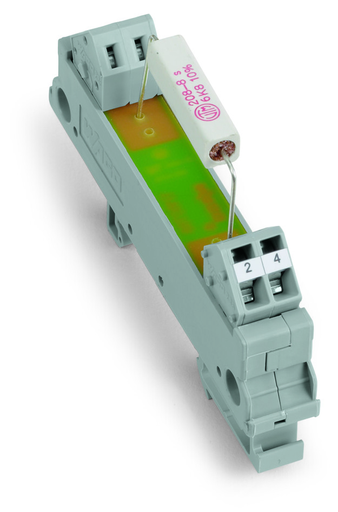

Specifications

Notes

• Safety information 1: Depending on operating conditions, the components' temperature may exceed the limit temperature for accessible parts.
• Note: Other resistors are available upon request!

Electrical Data

• Resistor: 9K1
• Tolerance: ±10 %
• Temperature coefficient: 50 ppm (20 °C)
• Component (P70) power dissipation: 5 W

Safety And Protection

• Protection type: IP00*
• Note on protection type: Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.

Connection Data

• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 236 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 13 mm / 0.512 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 34 mm / 1.339 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: Mounting carrier

Material Data

• Fire load: 0.310 MJ
• Weight: 19.117 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 70 °C (Derating must be observed)
• Surrounding air temperature (storage): -40 … 70 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918147620
• Customs tariff number Sales Organisation Germany: 85369010000
