Series 288
»

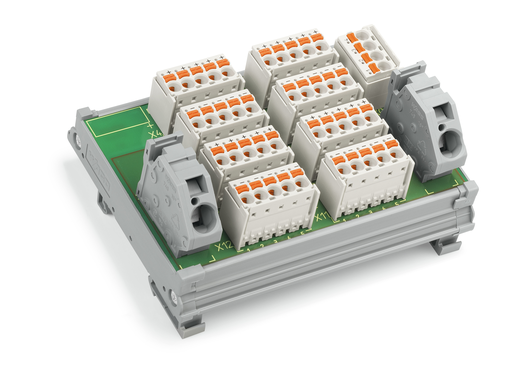

WAGO 288-870/000-030
WAGO 288-870/000-030
288-870/000-030 WAGO 288-870/000-030
OutOfStock
OutOfStock
Part #
288-870/000-030
Manufacturer
Wago
Condition
New
Quantity
Price
*Note:
Price:
$
85.61
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!
Potential distribution module; 4 potentials; with 6 connection points each; with 22 ground clamping points
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
Potential distribution module; 4 potentials; with 6 connection points each; with 22 ground clamping points
Features
May be used with electronic circuit breakers for 24 and 0 VDC power distribution, as a substitute for rail-mount terminal blocks
Pre-wiring and electrical isolation of current paths via pluggable picoMAX® Female Headers
Optional coding pins (2092-1610) protect against any inadvertent mixing of female headers
Optional gripping plates with sliding connector release (2092-1601/002-000 or 2092-1602/002-000) provide conductor strain relief
0 V may be supplied to the adjancent modules via comb-style jumper bar (745-682)
Specifications
Electrical Data
Nominal operating voltage: DC 24 V
Current per connection (max.): 10 A
Total current per potential (max.): 10 A
Total current 0 V (max.): 40 A
Connection Data
Total number of potentials: 4
Connection type (1): Power supply 0 V
Mating direction: 45°
Connection technology: CAGE CLAMP®
WAGO Connector: WAGO 745 Series
Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
Strip length: 12 … 13 mm / 0.47 … 0.51 inch
Connection type 2: Power supply 24 V; connection points
Mating direction (2): 45°
Connection technology 2: Push-in CAGE CLAMP®
WAGO Connector 2: picoMAX® 5.0 (WAGO 2092 Series)
Solid conductor 2: 0.2 … 2.5 mm² / 24 … 12 AWG
Fine-stranded conductor 2: 0.2 … 2.5 mm² / 24 … 12 AWG
Strip length 2: 9 … 10 mm / 0.35 … 0.39 inch
Note (conductor cross-section): 12 AWG: THHN, THWN
Physical Data
Width: 100 mm / 3.937 inch
Height: 85 mm / 3.346 inch
Depth from upper edge of DIN-rail: 49 mm / 1.929 inch
Mechanical Data
Mounting type: DIN-35 rail
Housing design: Mounting carrier
Material Data
Fire load: 1.978 MJ
Weight: 140.393 g
Environmental Requirements
Surrounding air temperature (operation): -25 … 70 °C (without condensation)
Surrounding air temperature (storage): -40 … 85 °C
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: DE
GTIN: 4055143107662
Customs tariff number Sales Organisation Germany: 85369010000
