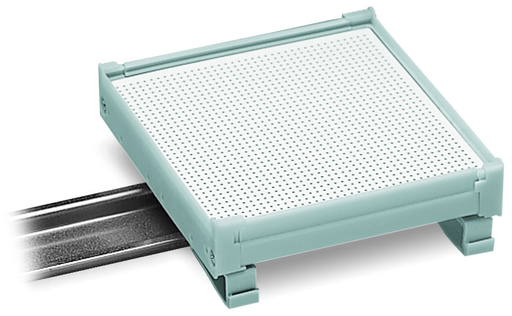

Specifications

Notes

• Note: Length calculation for a complete mounting carrier:PCB length: L1Base length: L2 = L1 − 15.8 mmMounting carrier length: L3 = L1 + 2 mmCover length: L4 = L1Lateral cover, size 2, 8.75 mm thickFree space between base and PCB (when using upper PCB groove): 5 mmPCB tolerances: thickness 1.5 mm ± 0.2 mm, length/width ± 0.2 mm; -0.1/+0.3 for milling contours

Physical Data

• Width: 1000 mm / 39.37 inch
• Height: 100 mm / 3.937 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Gray
• Fire load: 0.000 MJ
• Weight: 297.000 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4017332639477
• Customs tariff number Sales Organisation Germany: 39169010900
