Specifications

Notes

• Note: Max. admissible current per the manufacter’s data sheet. With all diodes loaded, the continuous current must be reduced.

Electrical Data

• Operating voltage: ≤ AC/DC 250 V
• Peak reverse voltage: 1000 V
• Rectified current for each diode (resistive): 1 A || 1 A

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 2

Physical Data

• Width: 15 mm / 0.591 inch
• Height from upper-edge of DIN-rail: 82.5 mm / 3.25 inch
• Depth: 52 mm / 2.047 inch

Mechanical Data

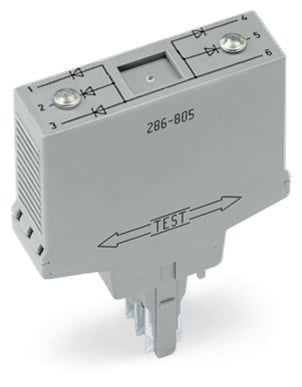

• Mounting type: Pluggable module for receptacle terminal blocks
• Housing design: Plug for carrier terminal blocks

Material Data

• Color: Gray
• Fire load: 0.324 MJ
• Weight: 18.686 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 40 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454198060
• Customs tariff number Sales Organisation Germany: 85369010000
