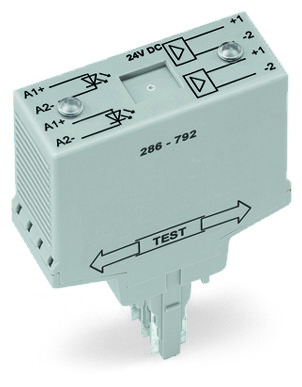

Specifications

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range (high level): DC 7.5 … 30 V
• Nominal input current at UN: 15 mA

Load Circuit

• Circuit type: 2-way || 2-wire connection
• Limiting continuous current: 0.25 A
• Nominal output voltage: DC 24 V
• Output voltage range: DC 20 … 30 V
• Voltage drop at output (max.): ≤ DC 2.5 V
• Leakage current at rated voltage: ≤ 3 µA
• Turn-on time: ≤ 60 µs
• Turn-off time: ≤ 120 µs
• Switching frequency: ≤ 1.5 kHz

Safety And Protection

• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 2.5 kVrms
• Protection type: IP20

Physical Data

• Width: 20 mm / 0.787 inch
• Height from upper-edge of DIN-rail: 82.5 mm / 3.25 inch
• Depth: 52 mm / 2.047 inch

Mechanical Data

• Mounting type: Pluggable module for receptacle terminal blocks

Material Data

• Color: Gray
• Fire load: 0.394 MJ
• Weight: 23.366 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 40 °C
• Surrounding air temperature (storage): -25 … 40 °C
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 60664-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454860448
• Customs tariff number Sales Organisation Germany: 85365005000
