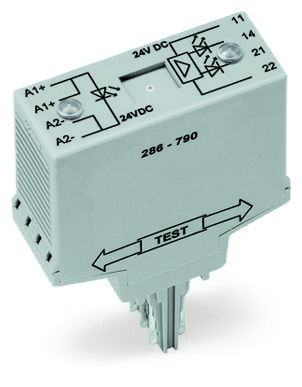

WAGO 286-790

286-790 WAGO 286-790

WAGO 286-790
Part # 286-790
Manufacturer WAGO
Condition New
Price: $ 71.65

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
OPTOCOUPLER MOD - DC24V 500mA
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Optocoupler module with 2 inverted outputs input DC 24 V

Specifications

Control Circuit

  • Nominal input voltage UN: DC 24 V
  • Input voltage range (high level): DC 20 … 30 V
  • Nominal input current at UN: 9 mA

Load Circuit

  • Circuit type: 2-wire connection || 2 inverted outputs
  • Limiting continuous current: 0.5 A
  • Nominal output voltage: DC 24 V
  • Output voltage range: DC 20 … 30 V
  • Voltage drop at output (max.): ≤ DC 1.2 V
  • Leakage current at rated voltage: ≤ 2 µA
  • Turn-on time: ≤ 4 µs
  • Turn-off time: ≤ 15 µs
  • Switching frequency: ≤ 2.5 kHz

Signaling

  • Status indicator: Red LED

Safety And Protection

  • Pollution degree: 2
  • Dielectric strength, control/load circuit (AC, 1 min): 2.5 kVrms
  • Protection type: IP20

Physical Data

  • Width: 20 mm / 0.787 inch
  • Height from upper-edge of DIN-rail: 82.5 mm / 3.25 inch
  • Depth: 52 mm / 2.047 inch

Mechanical Data

  • Mounting type: Pluggable module for receptacle terminal blocks

Material Data

  • Color: Gray
  • Fire load: 0.531 MJ
  • Weight: 32.039 g

Environmental Requirements

  • Surrounding air temperature (storage): -25 … 40 °C
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 60664-1

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821651451
  • Customs tariff number Sales Organisation Germany: 85365005000
: *
: *
: *
