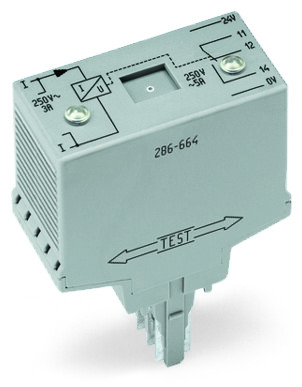

WAGO 286-664

286-664 WAGO 286-664

WAGO 286-664
Part # 286-664
Manufacturer WAGO
GTIN 4050821654407
Condition New
Price: $ 150.40

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
AC CURRENT FLOW MONT MOD
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Current flow monitoring module AC current flow monitoring module 1 A ... 10 A

Specifications

Electrical Data

  • Nominal operating voltage: DC 24 V
  • Power consumption at nominal supply voltage: ≤ 17 mA
  • Voltage drop at input: 44 … 430 mV
  • Measurement span (max.): 0.2 … 3 AAC
  • Switching threshold (adjustable) (min.): 0.2 A
  • Response time: 300 ms
  • Number of changeover/switchover contacts: 1
  • Number of break/switch-off contacts: 1
  • Limiting continuous current: 5 A
  • Switching voltage (max.): AC 250 V
  • Switching power (resistive) (max.): AC 1250 VA
  • Status indicator: Red LED; Energized relay (current < switching threshold)

Safety And Protection

  • Rated voltage: 250 V
  • Rated surge voltage: 4 kV
  • Pollution degree: 2
  • Dielectric strength, input/output (AC, 1 min): 1.5 kVrms

Physical Data

  • Height from upper-edge of DIN-rail: 82.5 mm / 3.25 inch
  • Depth: 52 mm / 2.047 inch

Mechanical Data

  • Mounting type: Pluggable module for receptacle terminal blocks
  • Housing design: Plug for carrier terminal blocks

Material Data

  • Color: Light gray
  • Fire load: 9.484 MJ
  • Weight: 58.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 40 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821654407
  • Customs tariff number Sales Organisation Germany: 85364900990
: *
: *
: *
