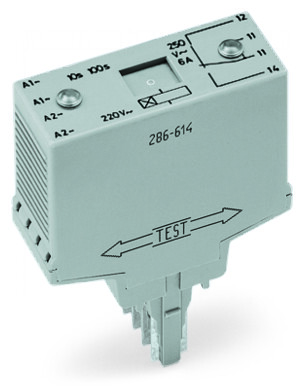

Specifications

Control Circuit

• Nominal input voltage UN: DC 24 V
• Input voltage range: -30 … +25 %
• Nominal input current at UN: 12.5 mA
• Time range: 10 … 100 s
• Reset time: 100 ms
• Repeat accuracy: 0.5 %

Load Circuit

• Number of changeover/switchover contacts: 1
• Contact material (relay): AgNi + Au
• Limiting continuous current: 6 A
• Inrush current (resistive) (max.): (AC) 15 A / 1 s
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 1500 VA
• Drop-out time (typ.): 15 ms
• Bounce time (typ.): 1 ms
• Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
• Mechanical life: 50 x 106 switching operations

Safety And Protection

• Rated voltage: 250 V
• Rated surge voltage: 4 kV
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 3 kVrms
• Protection type: IP20

Physical Data

• Width: 20 mm / 0.787 inch
• Height from upper-edge of DIN-rail: 82.5 mm / 3.25 inch
• Depth: 52 mm / 2.047 inch

Mechanical Data

• Mounting type: Pluggable module for receptacle terminal blocks

Material Data

• Color: Gray
• Fire load: 5.811 MJ
• Weight: 37.300 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -25 … 70 °C
• Processing temperature: -25 … +50 °C
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 60664-1

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143104791
• Customs tariff number Sales Organisation Germany: 85364900990
