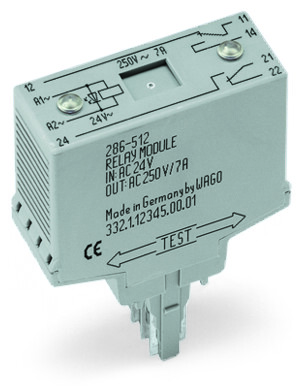

WAGO 286-516

286-516 WAGO 286-516

WAGO 286-516
Part # 286-516
Manufacturer WAGO
GTIN 4017332291507
Condition New
Price: $ 97.87

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
RELAY DPDT 230 VAC
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Switching relay module relay with 2 changeover contacts (2u)

Specifications

Control Circuit

  • Nominal input voltage UN: AC 230 V
  • Input voltage range: ±10 %
  • Nominal input current at UN: 3.5 mA

Load Circuit

  • Number of changeover/switchover contacts: 2
  • Contact material (relay): AgNi 0.15
  • Limiting continuous current: 7 A
  • Switching voltage (max.): AC 250 V
  • Switching power (resistive) (max.): AC 1750 VA
  • Pull-in time (typ.): 15 ms
  • Drop-out time (typ.): 3 ms
  • Bounce time (typ.): 2 ms
  • Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
  • Mechanical life: 30 x 106 switching operations

Signaling

  • Status indicator: Red LED

Safety And Protection

  • Rated voltage: 250 V
  • Rated surge voltage: 4 kV
  • Pollution degree: 2
  • Dielectric strength, control/load circuit (AC, 1 min): 2 kVrms
  • Dielectric strength, open contact (AC, 1 min): 1 kVrms
  • Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms
  • Protection type: IP20

Physical Data

  • Width: 20 mm / 0.787 inch
  • Height from upper-edge of DIN-rail: 82.5 mm / 3.248 inch
  • Depth: 52 mm / 2.047 inch

Mechanical Data

  • Mounting type: Pluggable module for receptacle terminal blocks

Material Data

  • Color: Gray
  • Fire load: 0.391 MJ
  • Weight: 35.200 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -25 … 40 °C
  • Surrounding air temperature (storage): -25 … 70 °C
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 75 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 60664-1

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4017332291507
  • Customs tariff number Sales Organisation Germany: 85364900990
: *
: *
: *
