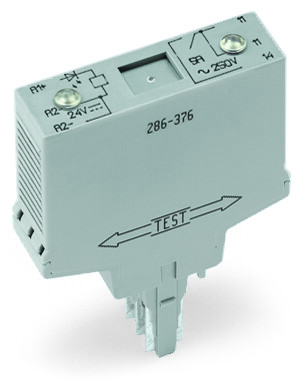

SWITCHING RELAY MOD 24VDC
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Switching relay module relay with 1 make contact (1A) for higher DC loads

Specifications

Control Circuit

  • Nominal input voltage UN: DC 24 V
  • Input voltage range: ±10 %
  • Nominal input current at UN: 20 mA

Load Circuit

  • Number of make/switch-on contacts: 1
  • Contact material (relay): AgNi 0.15
  • Limiting continuous current: 5 A
  • Inrush current (resistive) (max.): (AC) 14 A / 4 s
  • Switching voltage (max.): AC 250 V
  • Recommended minimum load: 12 V / 10 mA
  • Pull-in time (typ.): 9 ms
  • Drop-out time (typ.): 3 ms
  • Bounce time (typ.): 5 ms
  • Electrical life (NO; resistive load; 23 °C): 300 x 103 switching operations
  • Mechanical life: 20 x 106 switching operations

Safety And Protection

  • Rated voltage: 250 V
  • Rated surge voltage: 4 kV
  • Pollution degree: 2
  • Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
  • Dielectric strength, open contact (AC, 1 min): 2 kVrms
  • Protection type: IP20

Physical Data

  • Width: 15 mm / 0.591 inch
  • Height from upper-edge of DIN-rail: 82.5 mm / 3.248 inch
  • Depth: 52 mm / 2.047 inch

Mechanical Data

  • Mounting type: Pluggable module for receptacle terminal blocks

Material Data

  • Color: Gray
  • Fire load: 0.641 MJ
  • Weight: 34.987 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -25 … 40 °C
  • Surrounding air temperature (storage): -25 … 70 °C
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 75 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 60664-1

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454717933
  • Customs tariff number Sales Organisation Germany: 85364900990
: *
: *
: *
