WAGO 286-320

286-320 WAGO 286-320

WAGO 286-320
Part # 286-320
Manufacturer WAGO
Condition New
Price: $ 81.96
Qty
9999 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!

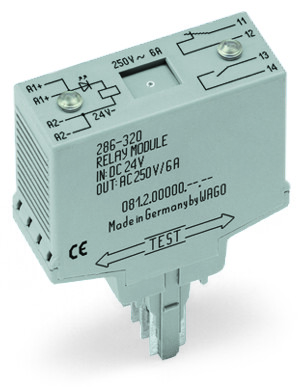

SWITCHING RELAY MOD 24VDC
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Switching relay module relay with 1 break contact and 1 make contact(1Ar)

Specifications

Control Circuit

  • Nominal input voltage UN: DC 24 V
  • Input voltage range: ±10 %
  • Nominal input current at UN: 7.4 mA

Load Circuit

  • Number of break/switch-off contacts: 1
  • Number of make/switch-on contacts: 1
  • Contact material (relay): AgSnO2
  • Limiting continuous current: 6 A
  • Inrush current (resistive) (max.): (AC) 15 A / 1 s
  • Switching voltage (max.): AC 250 V
  • Switching power (resistive) (max.): AC 1500 VA
  • Pull-in time (typ.): 10 ms
  • Drop-out time (typ.): 4 ms
  • Bounce time (typ.): 1 ms
  • Electrical life (NO; resistive load; 23 °C): 100 x 103 switching operations
  • Mechanical life: 50 x 106 switching operations

Signaling

  • Status indicator: Red LED

Safety And Protection

  • Rated voltage: 250 V
  • Rated surge voltage: 4 kV
  • Pollution degree: 2
  • Dielectric strength, control/load circuit (AC, 1 min): 3 kVrms
  • Dielectric strength, open contact (AC, 1 min): 1 kVrms
  • Dielectric strength, load/load circuit (AC, 1 min): 1.5 kVrms
  • Protection type: IP20

Physical Data

  • Width: 20 mm / 0.787 inch
  • Height from upper-edge of DIN-rail: 82.5 mm / 3.248 inch
  • Depth: 52 mm / 2.047 inch

Mechanical Data

  • Mounting type: Pluggable module for receptacle terminal blocks

Material Data

  • Color: Gray
  • Fire load: 0.390 MJ
  • Weight: 32.529 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -25 … 40 °C
  • Surrounding air temperature (storage): -25 … 70 °C
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 85 % (no condensation permissible)
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 60664-1

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454319502
  • Customs tariff number Sales Organisation Germany: 85364900990
: *
: *
: *
