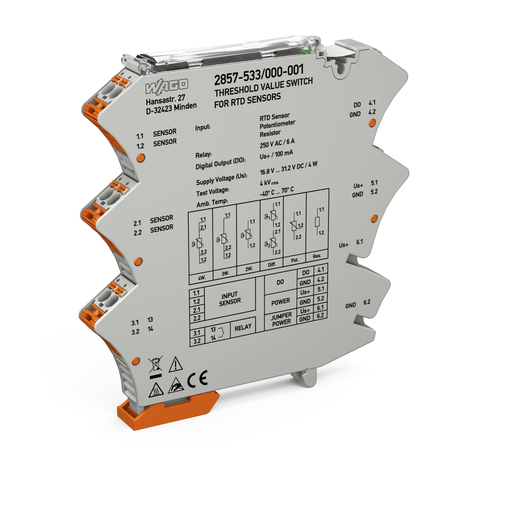

Features

• Both digital signal output and relay with make contact react to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values).
• Configurable RTD factor
• Adjustable software filter
• Simulation of input/output response via WAGO Configuration Display or WAGO Interface Configuration Software
• Safe 3-way isolation with 4 kV test voltage per EN 61010-1
• For railway applications

Specifications

Notes

• Note: This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) US+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 2 A is not exceeded.

Configuration

• Configuration options: WAGO Interface Configuration Software || WAGO Configuration Display

Input

• Input signal type: RTD sensors || Potentiometers || Resistor

Input – Rtd Sensors

• Sensor types (RTD): Pt100 || Pt200 || Pt500 || Pt1000 || Pt5000 || Pt10000 || Pt10 … Pt20000
• Sensor connection: 2-wire; 3-wire; 4-wire; differential
• Sensor power supply (RTD) (max.): ≤ 0.5 mA
• Measurement range, temperature (RTD): -200 … 850°C

Input – Resistors

• Input range (resistor): 0 … 100 kΩ
• Input range (potentiometer): 0 … 100 kΩ

Output – Digital

• Switching voltage (DO) (max.): Supply voltage (applied): −0.3 V
• Continuous current (DO) (max.): 100 mA (no internal restriction)
• Number of switching thresholds (DO): 1 or 2 (adjustable)
• Configurable rise/fall delay time (DO): 0 … 60 s (via software)

Output – Relay

• Number of make/switch-on contacts: 1
• Contact material (relay): AgNi + Au
• Switching voltage (max.): AC 250 V
• Limiting continuous current (relay; module assembly): 6 A (≤ 60 °C); 3 A (60 … 70 °C)
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Pull-in time (typ.): 8 ms
• Drop-out time (typ.): 4 ms
• Bounce time (typ.): 8 ms
• Number of switching thresholds (relay): 1 or 2 (adjustable)
• Configurable rise/fall delay time (relay): 0 … 60 s (via software)

Signal Processing

• Software filter (adjustable): Moving average value (filter level: 30)
• Step response (typ.): 60 ms (2-wire); 360 ms (3-wire); 540 ms (4-wire); 360 ms (Potentiometer)

Measurement Error

• Transmission error (max.): ± 1 K
• Temperature coefficient: ≤ 0,01 %/K

Supply

• Power supply type: 24 VDC
• Nominal supply voltage US: DC 24 V (SELV)
• Supply voltage range: ±30 %
• Power consumption at nominal supply voltage: ≤ 40 mA (+ IDO)

Test Voltage

• Test voltage (input/relay output/supply): 4 kVAC; 60 Hz; 1 min
• Test voltage (input/service interface): 3 kVAC; 60 Hz; 1 min
• Test voltage (relay output/service interface): 4 kVAC; 60 Hz; 1 min
• Test voltage (supply/service interface): 2.5 kVAC; 60 Hz; 1 min

Insulation Parameters Per En 61010-1

• Line-to-neutral conductor voltage (AC) max.: 300 V
• Overvoltage category: II
• Pollution degree: 2
• Insulation type (input, supply and service interface/relay output): Reinforced insulation
• Insulation type (input/supply/service interface): Basic insulation

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: picoMAX® 5.0
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 12.5 mm / 0.492 inch
• Height: 110 mm / 4.331 inch
• Depth from upper edge of DIN-rail: 107 mm / 4.213 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 1.374 MJ
• Weight: 86.050 g

Environmental Conditions Per Din En 50155:2018-05

• Altitude: A1
• Operating temperature class: OT3
• Extended operating temperature at switch-on: ST1
• Quick temperature changes: H1
• Power supply interruptions: S1
• Power supply switching classes: C2
• Service life: L4 at 40 °C (max.)
• Protective coatings for populated PCBs: PC2
• Temporary supply voltage dips: Criterion B

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
• EMC emission of interference: EN 61000-6-4; EN 61326-2-3; EN 50121-3-2
• Standards/Specifications: EN 61010-1 || EN 61373

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055144001570
• Customs tariff number Sales Organisation Germany: 90303370000
